Measuring Waveforms
CSA7000 Series, TDS7000 Series, & TDS6000 S eries Instruments User Manual
3- 159

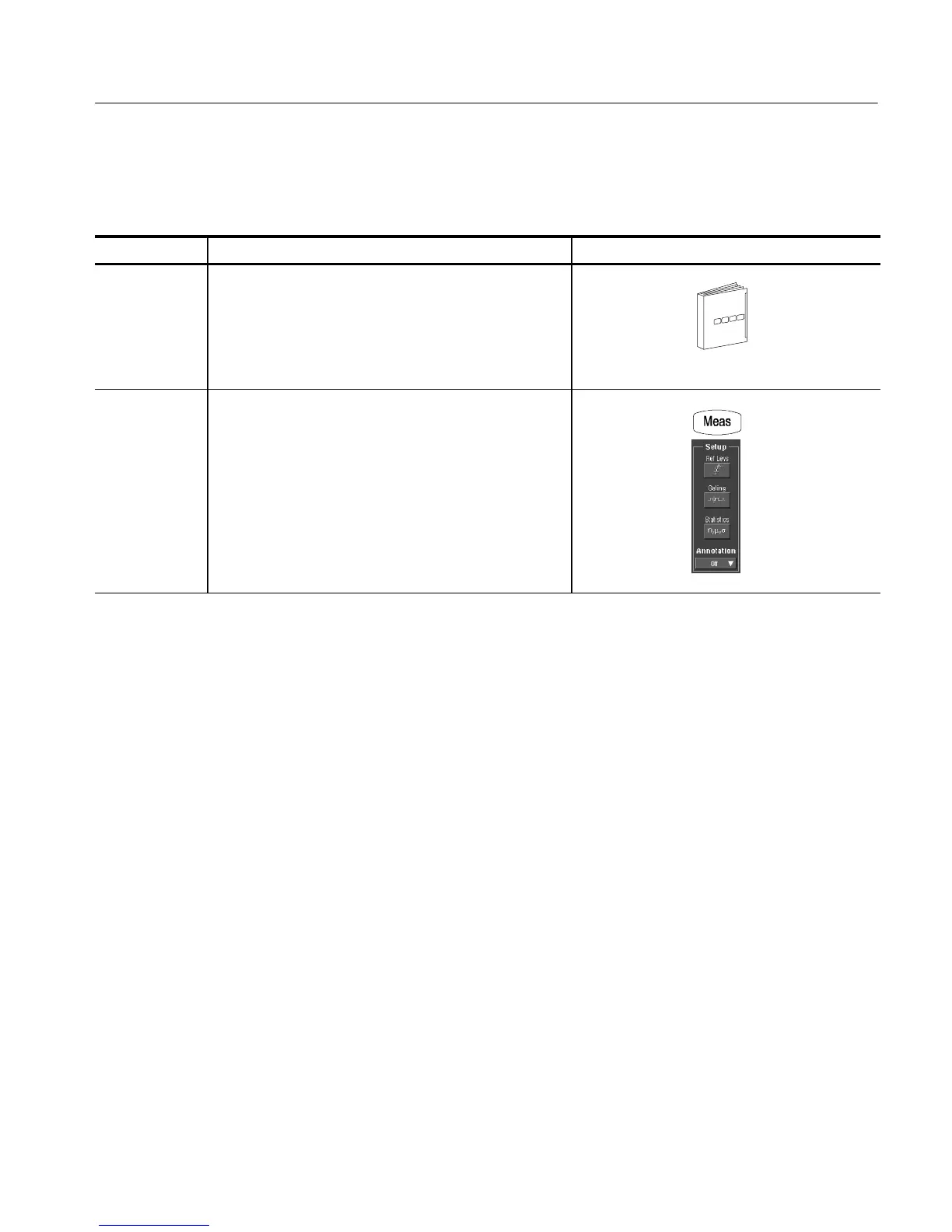

Use the procedure that follows to take a measurement over a segment of the
waveform (otherwise, the entire waveform is included in the measurement).
Overview To gate a measurem ent Related control elements and resources
Prerequisites
1. Set up as from last procedure.
See To Take Automatic Measurements on page 3--153
Access gating
2. From the toolbar, select Meas, and then select Gating
from the Measurement setup control window. See right.
To Localize a
Measurement
