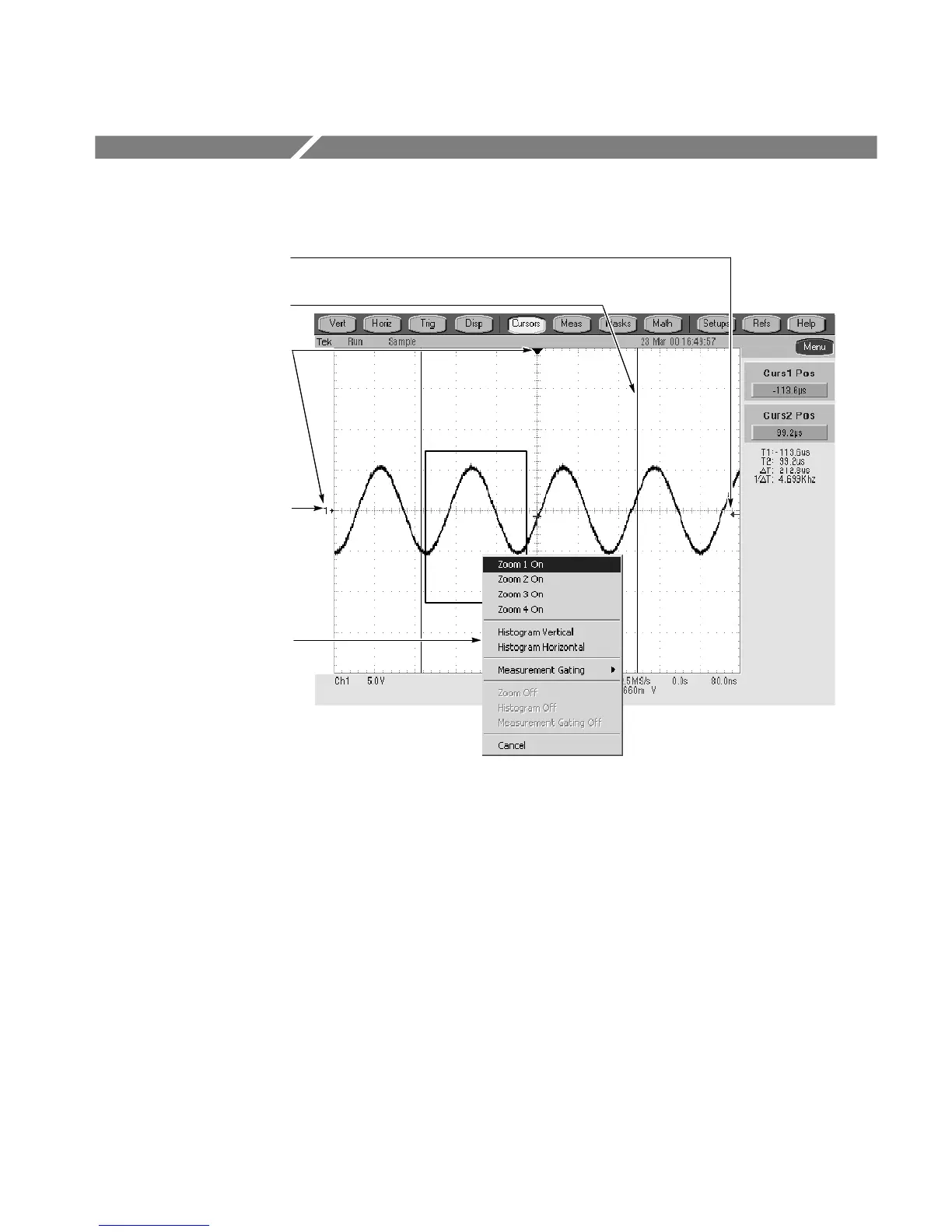

Display Map -- Single Graticule
Drag the position icons to
reposition a waveform
Drag across the waveform area to
zoom the boxed waveform segment.
Also enable/disable histograms and
measurement gating
Drag cursors to measure
waveforms on screen
Click icon to assign multipurpose
knobs to waveform vertical
position and scale
Drag icon to change the trigger
level
