Displaying Waveforms

CSA7000 Series, TDS7000 Series, & TDS6000 S eries Instruments User Manual

3- 135

Overview Control elements and resourcesTo zoom waveforms (Cont.)

Set up

MultiView

Zoom

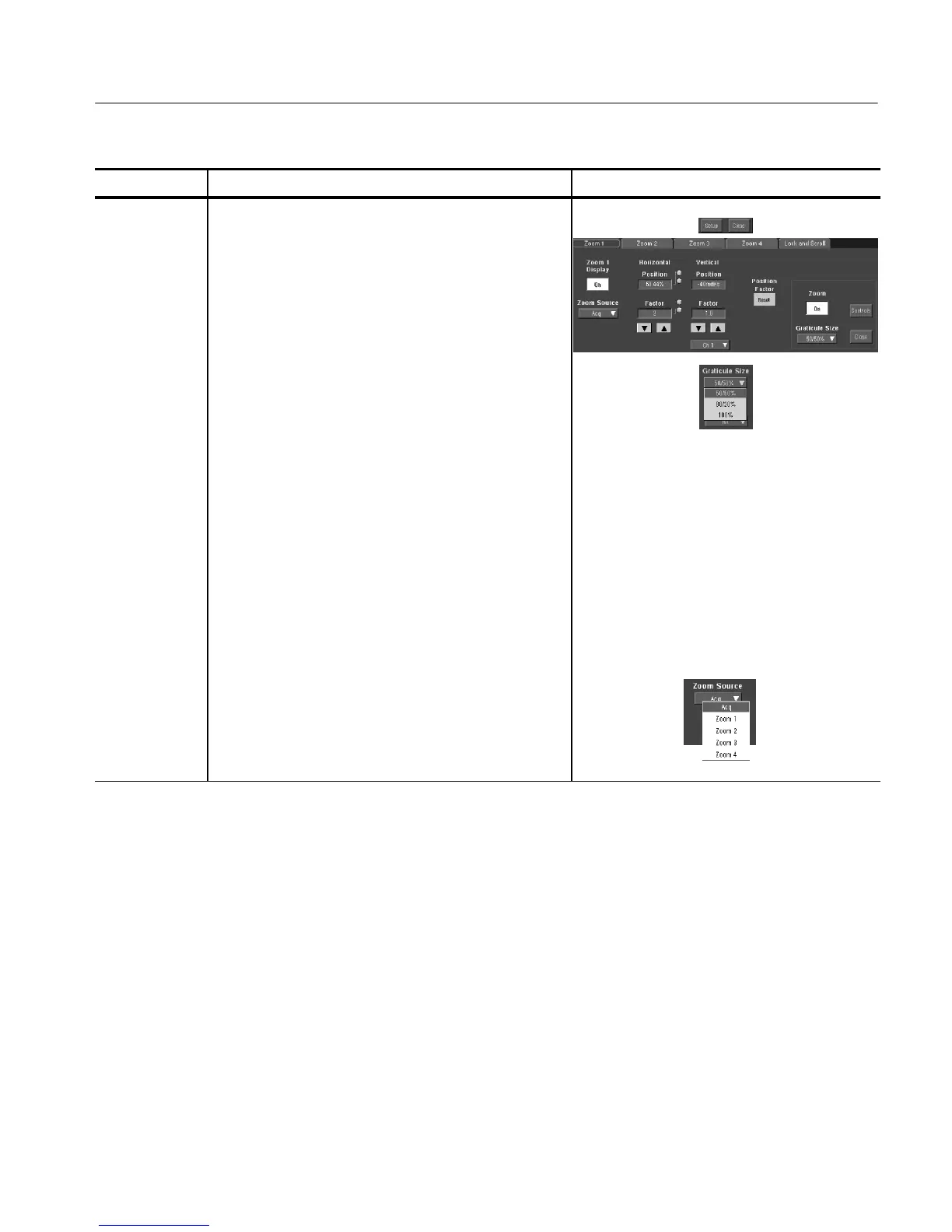

6. To display the Zoom setup window, touch Setup in the

controls window. Select t he tab for the zoomed

waveform area that you want to set up.

Note. To reduce the Zoom setup window to the controls

window, touch Controls.

7. Touch the Graticule Size button to change t he size of

the unmagnified (Acquisition) and Zoom windows:

H 50--50 allocates half of the available display for the

zoomed graticule and half of the available display

for the acquisition window.

H 80--20 allocates 80% of the availabl e display for the

zoomed graticule and 20% for the acquisition

window.

H 100 uses the entire display for the zoomed

graticul e.

Note. The instrument displays the box-enclosed area on

the waveform magnified in the graticule. If two graticules

are shown, the magnified waveform is shown in the

bottom graticule.

8. To select the source of your zoomed waveform area,

touch Zoom Source and select the source from the

drop-down list. You can select the live acquisitions or

one of the four zoom areas.
