Tektronix TDS6000 Series User Manual

Measuring Waveforms
3- 178
CSA7000 Series, TDS7000 Series, & TDS6000 S eries Instruments User Manual
Overview Related control elements and resourcesTo calibrate probes (Cont.)
Optimize gain
and offset
accuracy
2. Connect the fixture to the instrument (see To Connect
the Probe Calibration Fixture on page 3--173).
3. Remove the small jumper from the fixture.
4. Connect one probe to the fixture.
5. If compensating a passive probe, first perform the To
Compensate Passive Probes procedure on page 3--180.

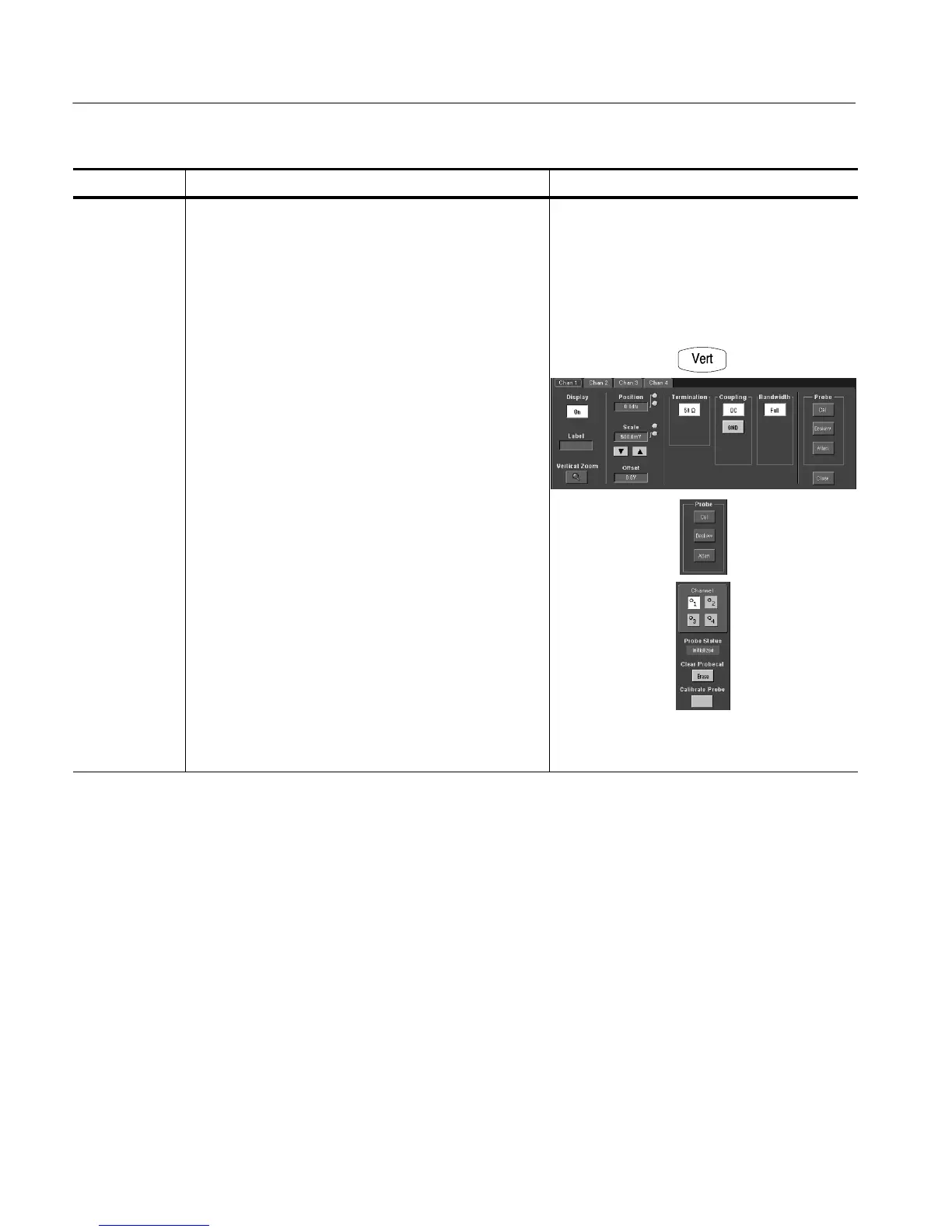

6. From the toolbar, touch the VERT button to display the
instrument Vertical setup control window.
7. Touch the Probe Cal button to display the vert ical Probe
Cal control window.
8. Select the instrument channel to which the probe is
attached.
Note: Clear Probecal Erase will erase any previous
calibration data for the attached probe.
9. Touch the Calibrate Probe button.
10. When the routine is finished, remove the connections
and replace the small jumper.
