Creating and Using Math Waveforms
3- 242
CSA7000 Series, TDS7000 Series, & TDS6000 S eries Instruments User Manual
Overview Control elements and resourcesSpectral math example (cont.)
Set up the
cursors

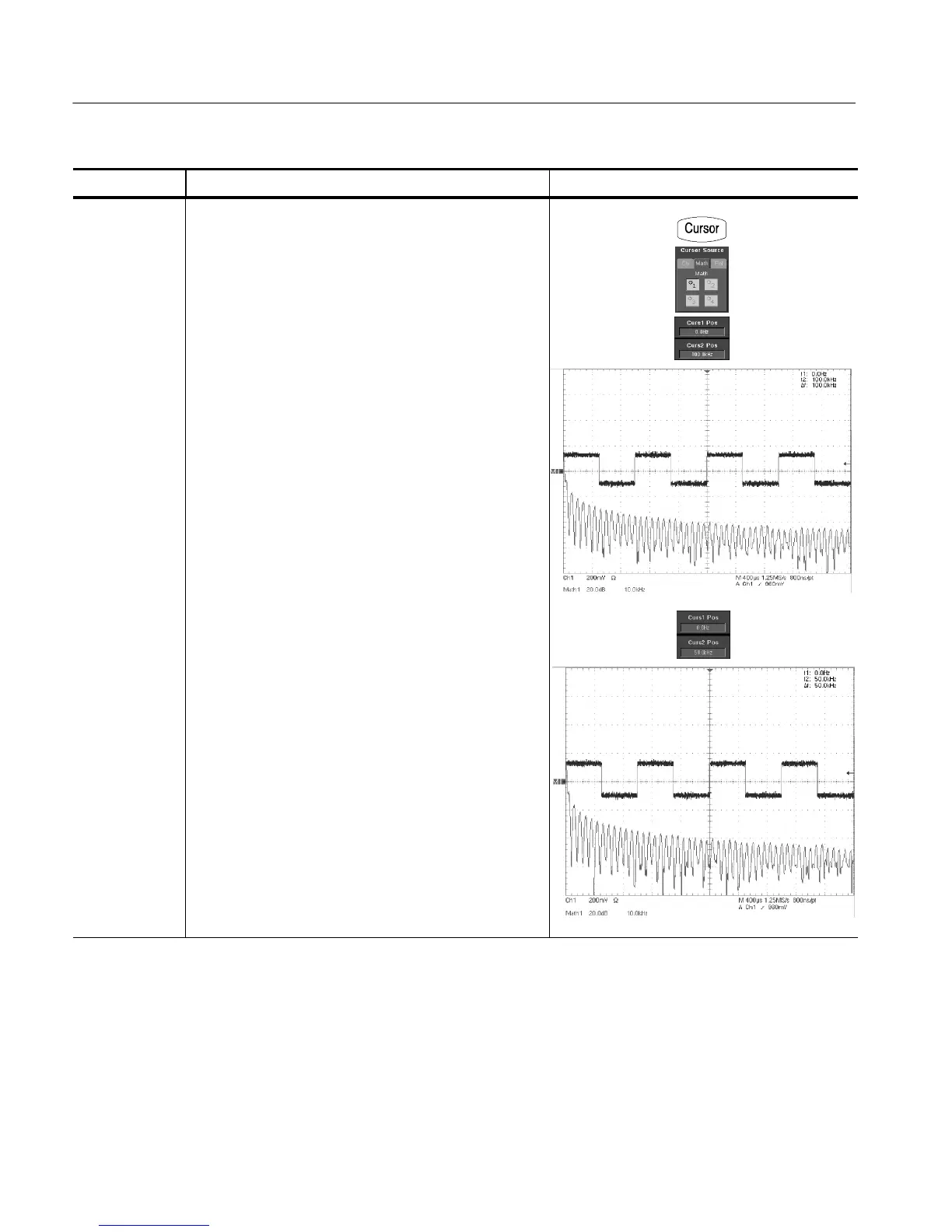

10. From the button bar, touch Cursors.
11. To assign the cursors to the spectral analysis math
waveform, touch the Cursor Source Math tab, and touch
the Math 1 button.
12. Use the multipurpose knobs or keypad to set the Curs1
Pos to 0.0 Hz and the Curs2 Pos to 100 kHz.
The cursor readout now indicates the frequency span
setinstep9.
13. Use the multipurpose knobs or keypad to set the
Curs2 Pos to 50 kHz.
The cursor readout now indicates the center frequency
setinstep9.
