Adjustments
9. Enable the generator output.

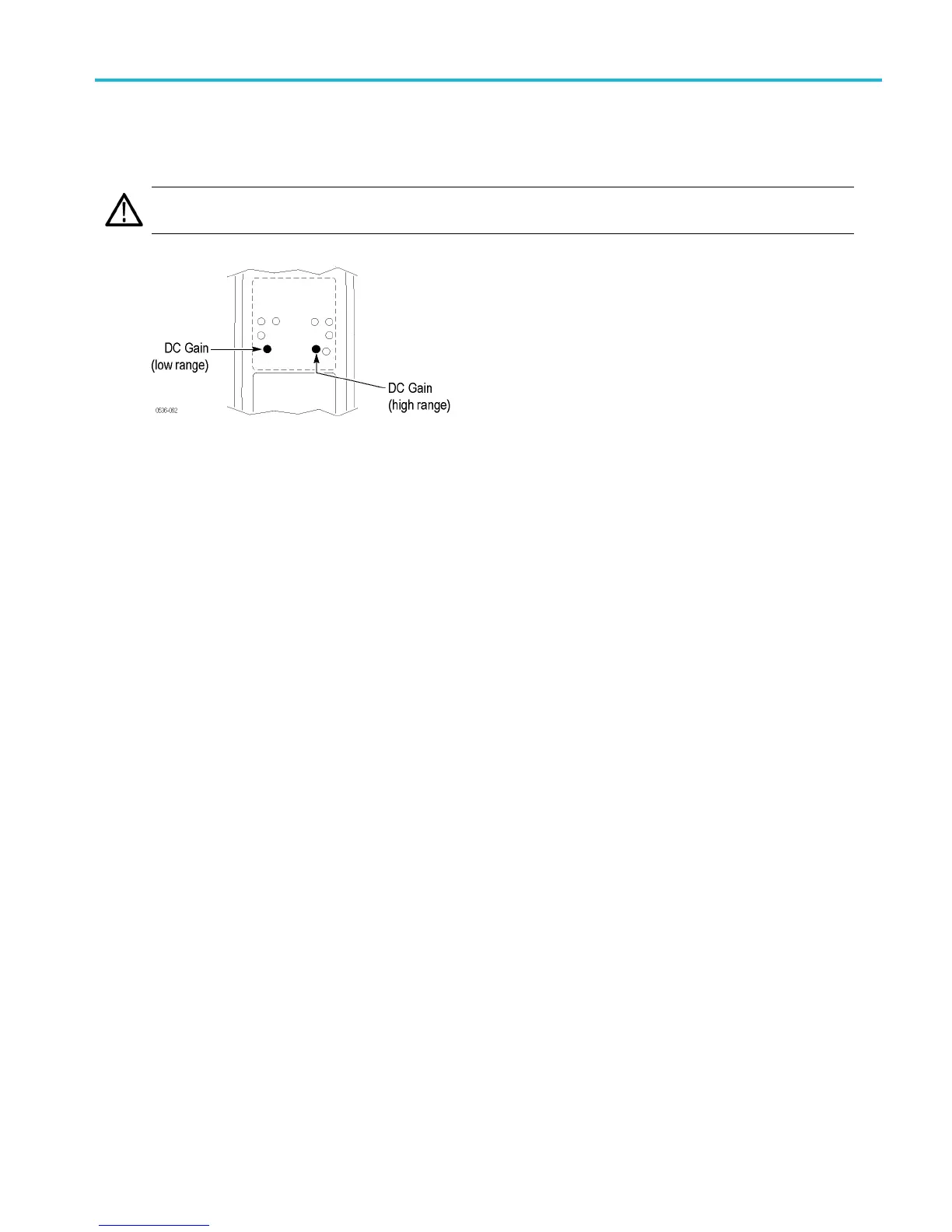

10. Adjust the low-range DC gain pot in the probe to ≤2% of the expected output.
WARNING. Use o
nly a n insulated tool to make the adjustment. Failure to do so presents a potential shock hazard.
11. Disable the generator output.
12. Set the probe attenuation to the next range and set the generator output voltage to the value shown in the table.
13. Enable the generator output and adjust the high-range DC gain pot in the probe to ≤2% of the expected output.
14. Disable the generator output.
THDP0100/0200 & TMDP 0200 High Voltage Differential P robes Instruction Manual 46
