Tektronix WFM6120 User Manual

Monitoring the S
DI Physical Layer

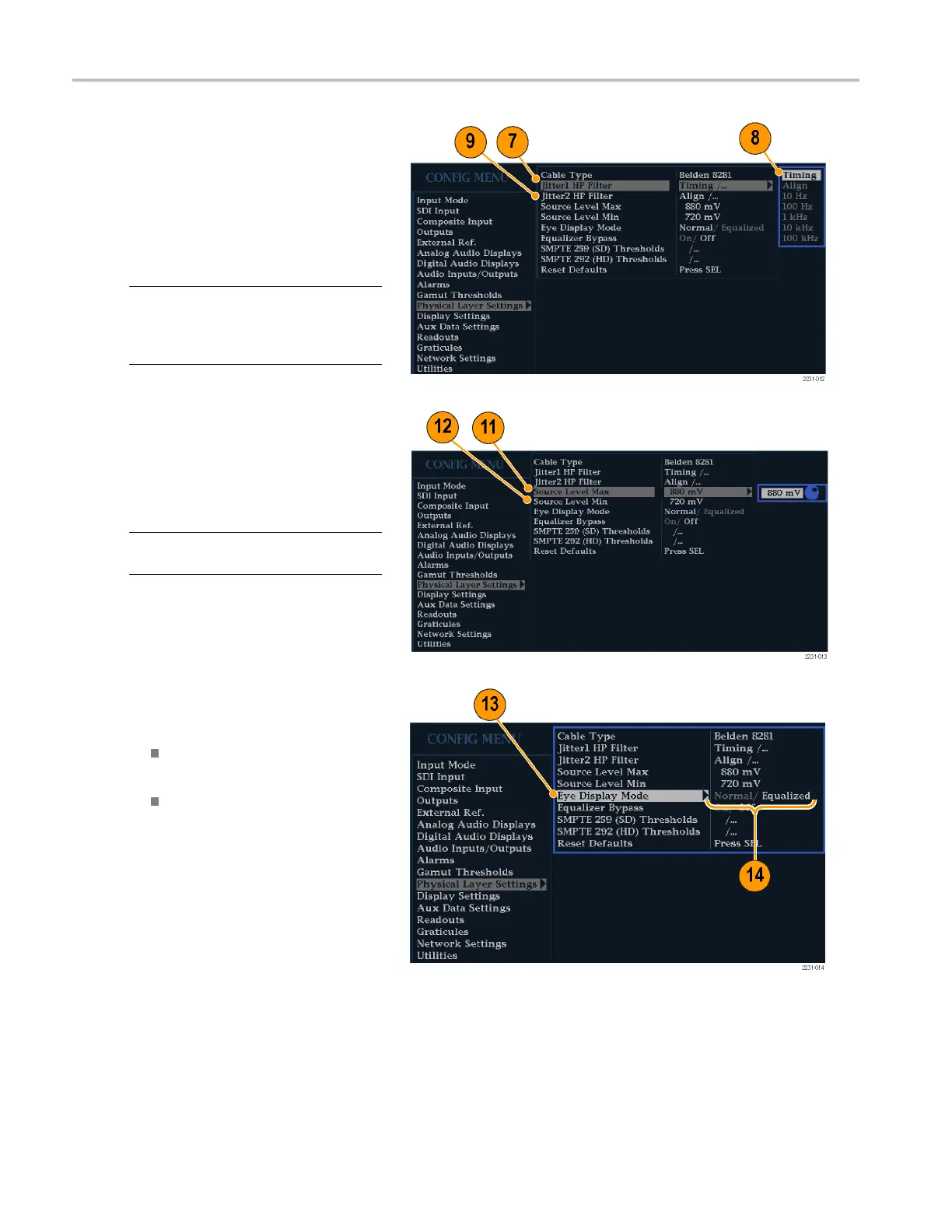

7. Select Jitter1 HP Filter.
8. Select a high-pass filter value for the
Jitter1 engine controlling the top two tiles
of the instrum
ent display.
9. Select Jitte
r2 HP Filter.
10. Repeat step 8
for the Jitter2 engine
controlling the bottom two tiles.
NOTE. The Timing filter selection sets the
filter value
to 10 Hz. The Align filter selection
sets the filtervalueto1kHzforSDor
100 kHz for HD.
11. Select Source Level Max.Usethe
General knob to increase or decrease
the setting.
12. Select Source Level Min.Usethe
General knob to increase or decrease
the setting.
NOTE. The maximum value you can select
is 1000 mV; the minimum value is 600 mV.
13. Select Eye Display Mode.
14. S e lect one of the following settings:
Normal. The Eye display shows the
SDI input signal directly.
Equalized. The Eye display shows
the SDI input signal after it has
passed through the internal cable
equalizer and comparator.
58 Waveform Monitors Quick Start User Manual
