Tektronix WFM6120 User Manual

Monitoring the S
DI Physical Layer

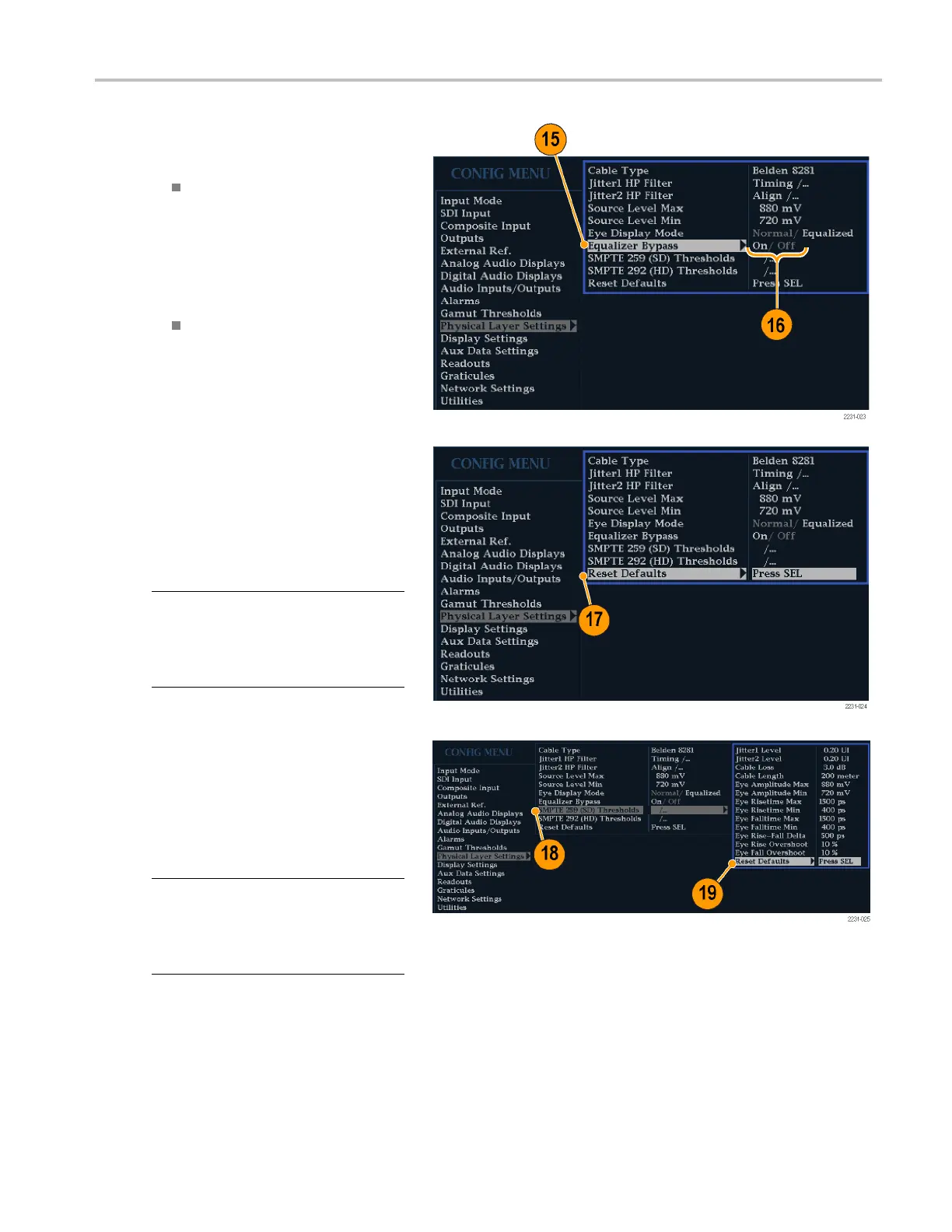

15. Select Equalizer Bypass.
16. Select one of the following settings:
On. Bypass the equalizer when
the instrument is connected to a
signal with a
short length of cable.
This setting minimizes the jitter
contributed by the internal equalizer
and is genera
llyusedonlywith
signals containing very low jitter.
Off. Enables the equalizer, which
enables operation with typical cable
lengths an
d reduces jitter due to
cable effects. Use this setting for
most signals.
To Set SMP
TE 259/2 92 Alarm
Thresholds
17. To reset both the SMPTE 259 (SD)
and SMPTE 292 (HD) alarm thresholds
back to the factory-default v alues, s elect
Reset SMPTE259/292 Defaults and
press SEL.
NOTE. The following thresholds only appear
in the menu when Option PHY is installed:
Eye Amplitude Max/Min, Eye Risetime
Max/Min, Eye F alltime Max/Min, and Eye
Rise-Fall Delta.
18. To res
et only the SD thresholds or the
HD thresholds back to the factory-default
values, select SMPTE 259 (SD)
Thres
holds or SMPTE 292 (HD)
Thresholds, depending on which type of
video signal you are monitoring.
19. Select Reset Defaults and press SEL.
NOTE
. The steps and illustrations that
follow show setting custom SD threshold
values. The HD threshold names are the
sam
e as the S D thresholds, but the setting
values and ranges may b e different.
Waveform Monitors Quick Start User Manual 59
