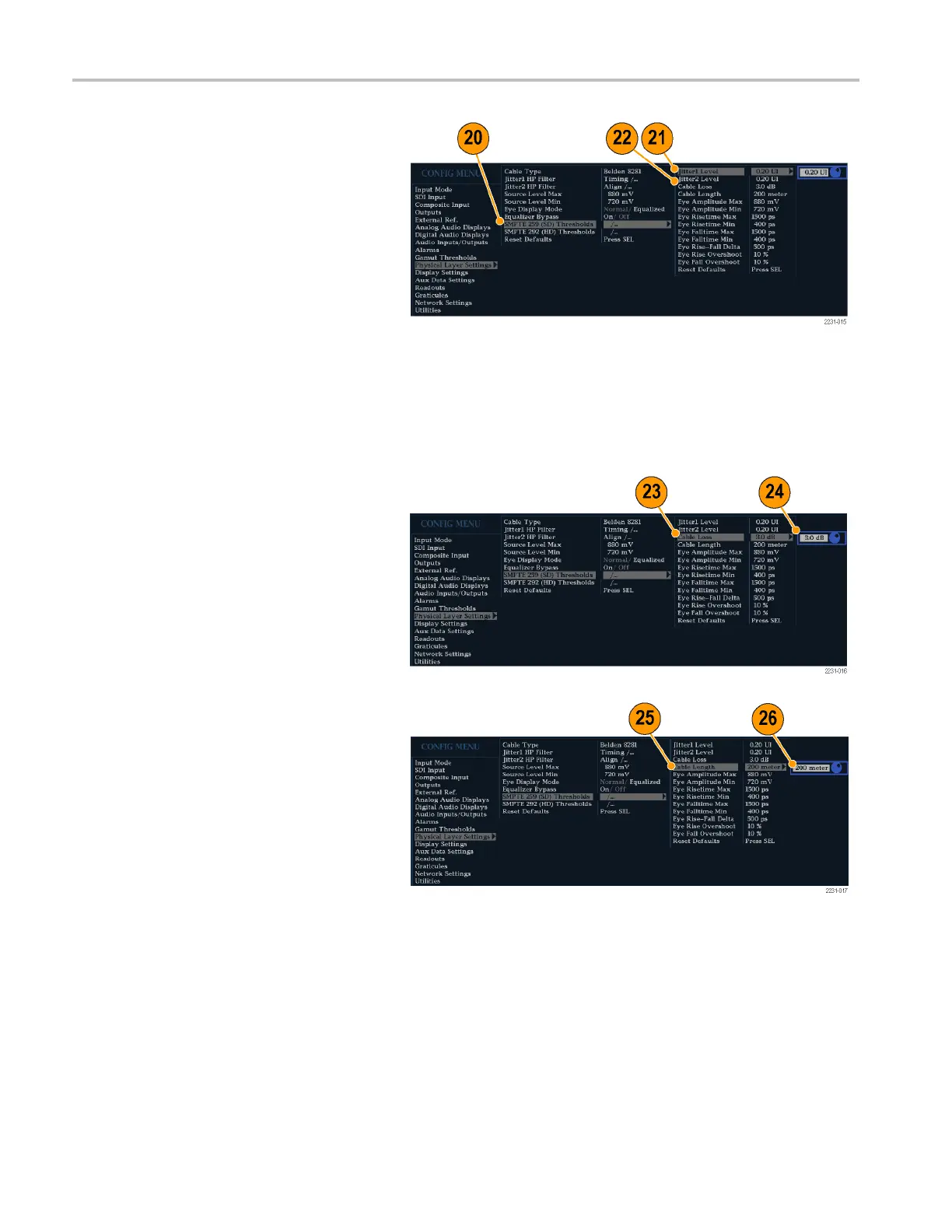

20. To set custom th
reshold levels, select
SMPTE 259 (SD) Thresholds or SMPTE
292 (HD) Thresholds, depending on
whichtypeofv
ideo signal you are
monitoring.
21. Select Jitter1 Level.UsetheGeneral
knob to increase or decrease the
threshold le
vel for the Jitter1 engine
controlling the top two tiles of the
instrument display.
The maximum
level you can enter is
4.00 UI; the minimum level is 0.10 UI.
22. Select Jitter2 Level.UsetheGeneral
knob to increase or decrease the
threshold
level for the Jitter2 engine
controlling the bottom two tiles of the
instrument display.
23. Select Cable Loss to specify the
threshol
d for signal loss (in dB) due to
length of cable connecting the signal
source to the instrument.
24. Use the General knob to increase or
decreas
e the threshold level.
The maximum level you can enter is
30.0 dB; the minimum level is 0.0 dB.
25. Select Cable Length to specify the
threshold for the length of the cable (in
meter
s) connecting the signal source to
the instrument.
26. Use the General knob to increase or
decrease the cable length setting.
The m
aximum length you can enter
is 300 meters; the minimum length is
0 meters.
60 Waveform Monitors Quick Start User Manual
