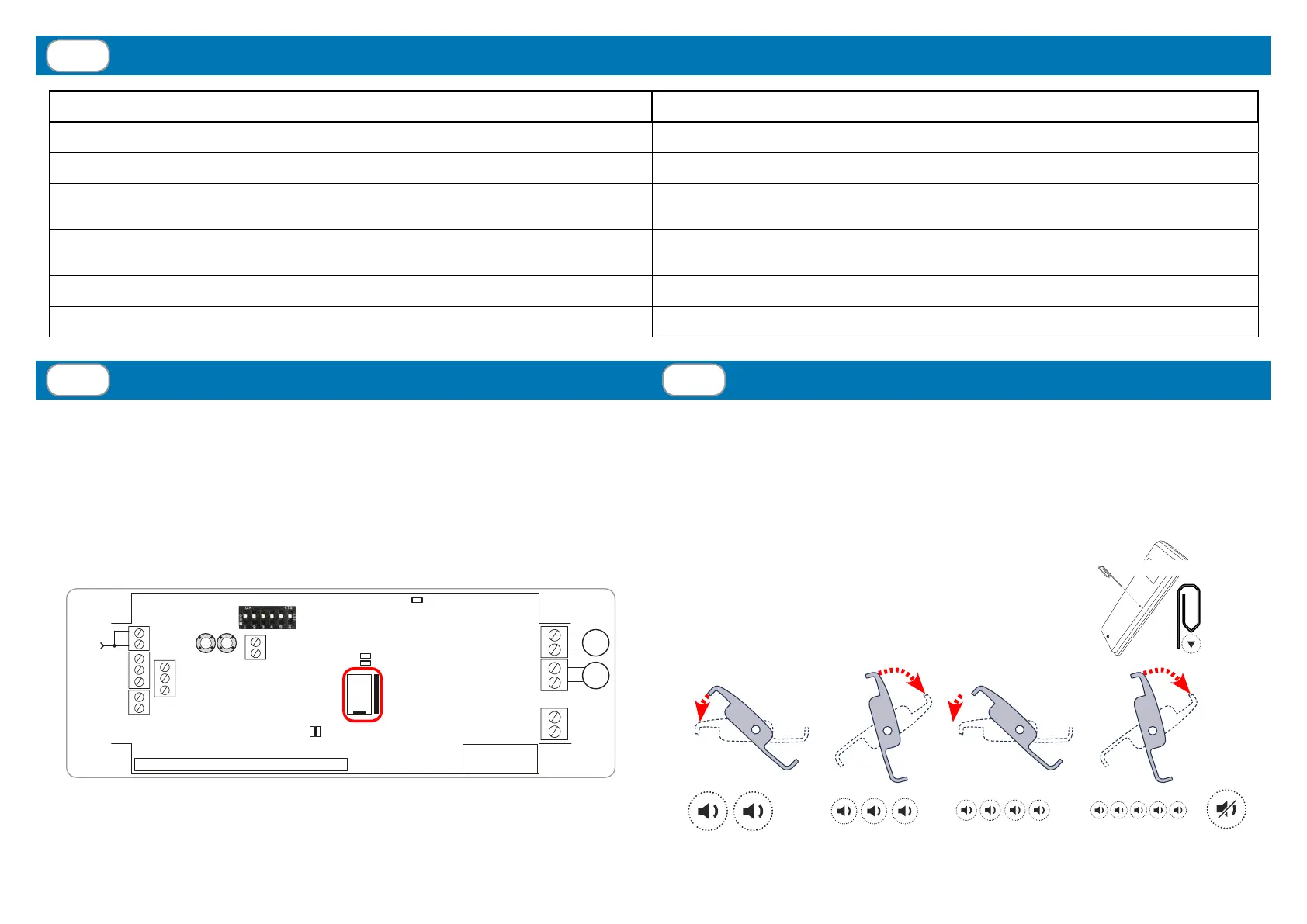

Problem Solution
At power-on, the control unit does not move the motors and emits no warning. The system needs to be programmed, see section 2.
L3 ashes and an intermittent sound starts after conguration. Repeat the procedure. At the end of it DO NOT change the DIP4-5 setting.
The conguration procedure does not start upon pressing P1 and P2 twice.
P1 and P2 must be pressed simultaneously. There must be no more than 1 second
between pressing the rst and the second time.
During the manual movement test in the conguration procedure, the motors do
not stop automatically at the limit stop.
Change the current threshold (section 2.4) before continuing with conguration.
There’s no continuous beep during transmitter memorization. There must be no more than 1 second between pressing the buttons.
It is impossible to memorize a transmitter. The radio code is already memorized or the memory is full.
5.1
TROUBLESHOOTING (what to do IF…)
5.2
Replacing the control unit
Memory
5.3
Quick learning of limit switch
If the following have been already programmed
• motor control mode
• the correct motor direction
• at least one transmitter for each of the independent motor output
• current threshold to be applied
it is possible to carry out the self-learning of limit switches without accessing
the control unit.
complete
closing
complete
opening
complete
closing
complete
opening
...
...
...
...
• Pergola with 2 synchronized motors: Together MOTOR 1 and MOTOR 2
• Pergola with 2 independent motors: MOTOR 1 rst, then MOTOR 2
Test the movement and the direction of the motors by
means of the memorized transmitter, after this keep the
button P3 of the transmitter pressed for 10 s.
Memorized
P3
( 10 s)
M1
M2
In the event of a defective control unit, if the provided memory (see below) is
still working and the revision of the board is > 9.x, it may be replaced without
losing the conguration parameters.
To do this, the control unit must not be powered:
• insert the memory card of the defective control unit into the new one;
• set the DIP switches of the new control unit as they were in the old one;
• switch the system on.
