Teleco TVPLA868CC2 - Setting of Current Threshold During Configuration

7
PRESSES Threshold (A)
1 0.5
2 1.0
3 1.5
4 2.0
5 2.5
6 3.0
7 3.5
8 4.0
9 4.5
The control unit uses a current threshold for motor stop. The thresholds may therefore be changed during conguration according to the selected mode (DIP4-5):
1. Turn the control unit OFF then ON again.
2. Within 10 seconds from power ON, set DIP6 to ON.
WITHIN 30 SECONDS:
3. Press P1 as many times as the desired level, from 1 (minimum = 0.5 A) to 9 (maximum = 4.5 A).
4. Set DIP6 to OFF to store the new value.
L4 will then ash as many times as the stored level. If P1 is not pressed within 30 seconds,the procedure is
automatically ended and the threshold remains unchanged.
ATTENTION: at the end of the procedure, DIP6 must be set to OFF and remain in that position during standard
operation of the control unit.

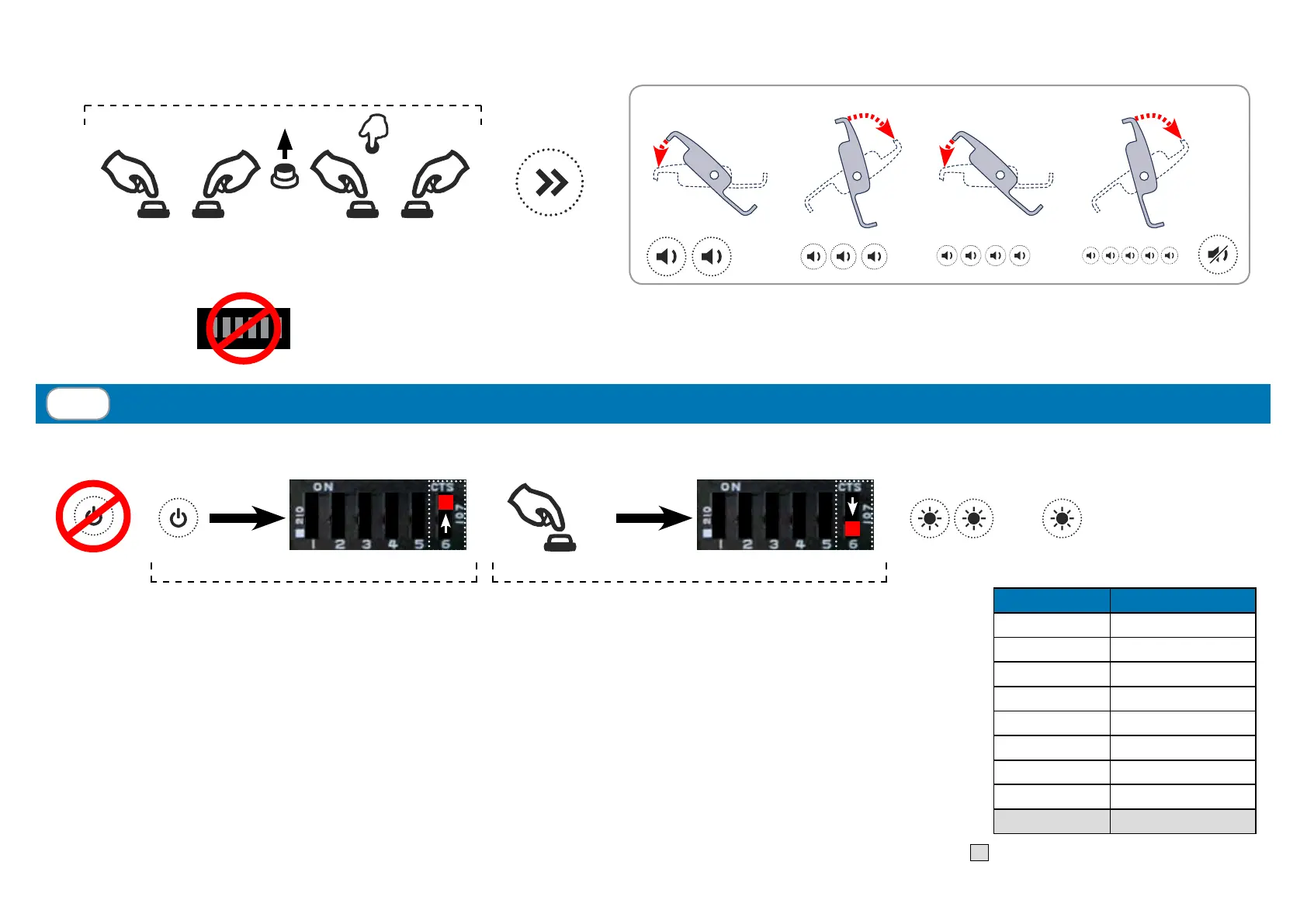

SETTING OF THE CURRENT THRESHOLD DURING CONFIGURATION
DIP6=ON
< 10 s < 30 s
P1
...
/
DIP6=OFF
...
L4 ashes
2.4
3. SELF-LEARNING OF LIMIT SWITCHES
MOTOR 1 rst, then MOTOR 2
ATTENTION:
ON
1 2 3 4 5 6
Press P1 and P2 simultaneously twice in quick succession and
hold them the second time for 5 s
DO NOT change the DIP conguration. This change would be signalled by a new intermittent sound and the ashing of L3,
and would require a new conguration procedure.
< 1 s
P2
+
P1
( 5 s)
P2
+
P1
complete
closing
complete
opening
complete
closing
complete
opening
...
...
...
...
= default value, unless otherwise indicated
on the technical label of the product.
