Teleco TVPLA868CC2 - Pergola with 2 Independent Motors

6
DIP4=OFF
DIP5=OFF

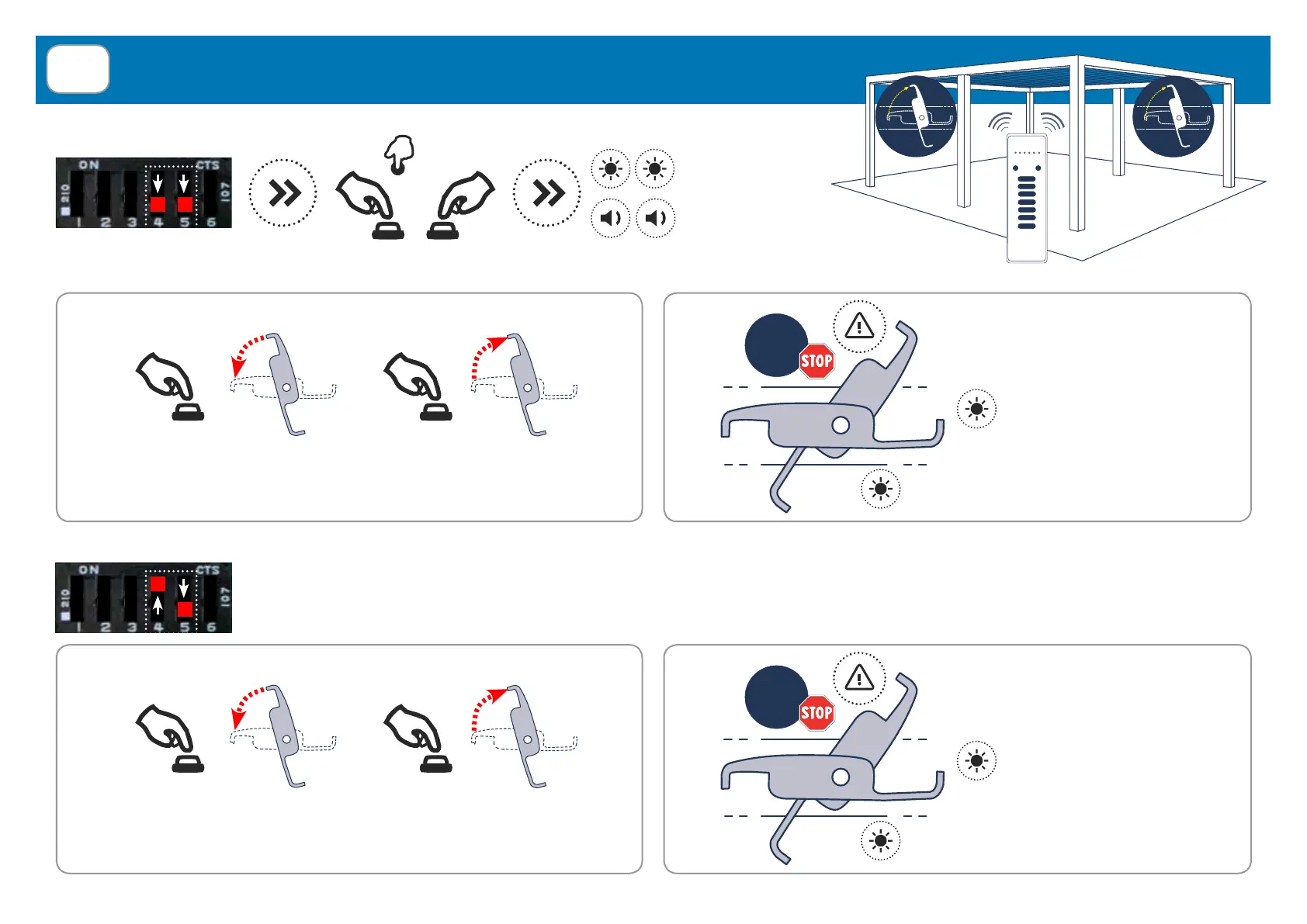

Pergola with 2 independent motors
1. MOTOR 1 CONFIGURATION
DIP4=ON
DIP5=OFF
2. MOTOR 2 CONFIGURATION
2.3
...
Continuous sound
L3 ashes
Press P1 and P2 simultaneously
and hold for 5 s
...
P2
+
P1
( 5 s)
L1
L1
Closing
Opening
M
24Vdc
Check that movement
stops when the limit switch
is reached (L1 ON)
If it doesn’t, change the
threshold as per PAR 2.4
(page 7) and repeat.
LIMIT SWITCHES
CLOSE
OPEN
DIRECTION
P1 P2
If the direction is wrong, invert the motor wires.
= =
L2
L2
Closing
Opening
M
24Vdc
Check that movement
stops when the limit switch
is reached (L2 ON)
If it doesn’t, change the
threshold as per PAR 2.4
(page 7) and repeat.
LIMIT SWITCHES
CLOSE
OPEN
DIRECTION
P1 P2
If the direction is wrong, invert the motor wires.
= =
