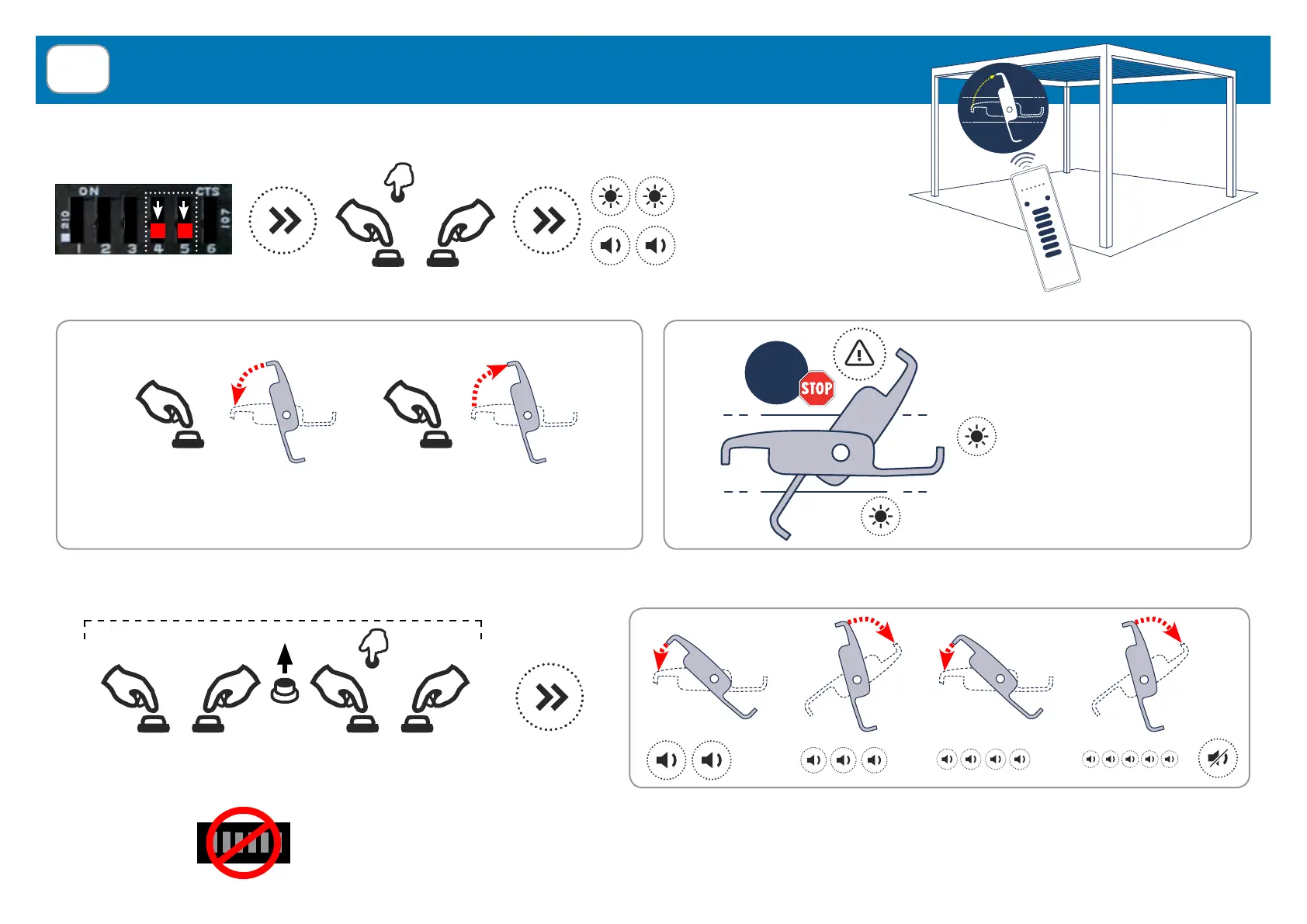

Teleco TVPLA868CC2 - Motor Configuration; Pergola with 1 Motor

4
DIP4=OFF
DIP5=OFF
Pergola with 1 motor
1. MOTOR CONFIGURATION
2. SELF-LEARNING OF LIMIT SWITCHES
ATTENTION:
ON
1 2 3 4 5 6
...
Continuous sound
L3 ashes
Press P1 and P2 simultaneously
and hold for 5 s
Press P1 and P2 simultaneously twice in quick succession and
hold them the second time for 5 s
...
P2
+
P1
( 5 s)
DO NOT change the DIP conguration. This change would be signalled by a new intermittent sound and the ashing of L3,
and would require a new conguration procedure.
2.1
L1
L1
Closing
Opening
M
24Vdc
Check that movement
stops when the limit switch
is reached (L1 ON)
If it doesn’t, change the
threshold as per PAR 2.4
(page 7) and repeat.
LIMIT SWITCHES
CLOSE
OPEN
DIRECTION
P1 P2
If the direction is wrong, invert the motor wires.
= =
< 1 s
P2
+
P1
( 5 s)
P2
+
P1
complete
closing
complete
opening
complete
closing
complete
opening
...
...
...
...
