Telecom Behnke 5 Series - Wiring Diagram

Set up
44 www.behnke-online.com
GB
Instructions for Series 5 / 10

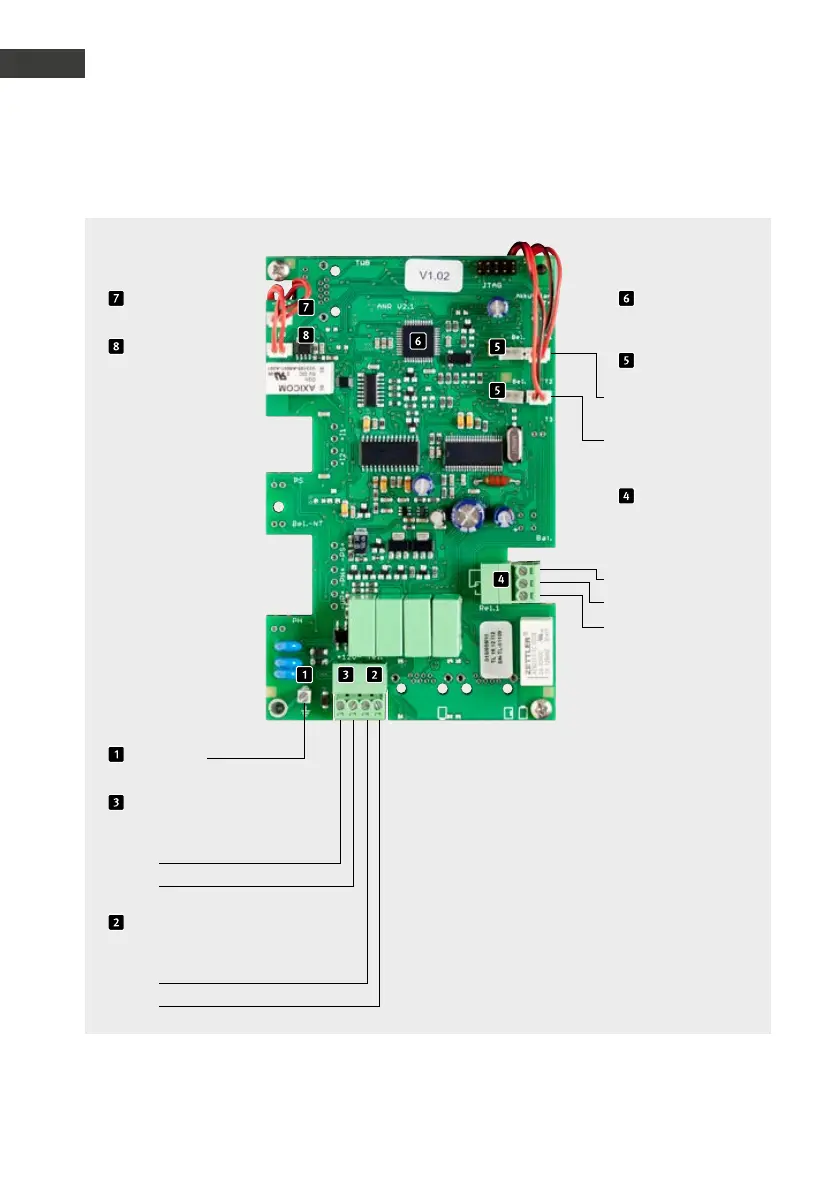

Grounding
Telephone line
Main analogue connection or
analogue telephone extension
Wire b
Wire a
Speakers
Microphone
Button 2
Buttons
Relay 1
Relay switch power:
max. 60 VA/24 W: 0.5 A,
120 V~/1 A, 24 V=
Control contact
Rest contact
Operating contact
CPU
15 V =
Additional power supply
Potential-free voltage, e.g. from a Behnke
power supply unit
+
–
Button 1
3.4. Wiring diagram
