7. dimensions

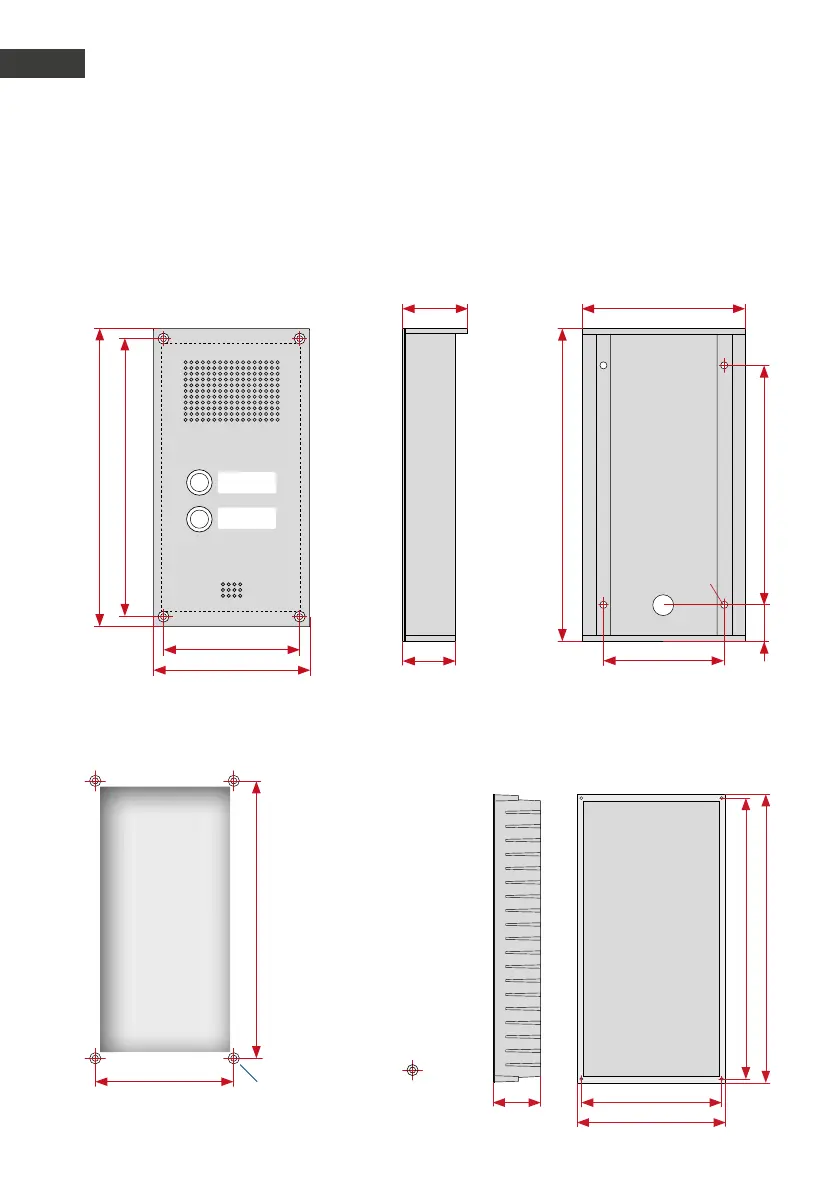

7.1. Flush and on-wall mounting Series 5
On-wall housing
220
170
115
45
39
85
Ø 4 mm
Page Back
25
Front view
200
210
100
110
In-wall housing
Necessary hollow for mounting a 106 x 205
mm housing
40 100
106
200
205
▸
Hohlwandmontage z. B.
in bauseitigen Säulen etc.
Hier auf die ausreichende
Be- und Entlüftung des
Baukörpers achten um
einer Kondensatbildung
vorzubeugen.
▸
Depth with electronics: ca.
30 mm
▸
We suggest a cavity of
43-53 mm deep (incl. space
for wiring)
▸
Drilling with
M3 screw thread=
200
Necessary
hollow
100
Width 95 mm
Height 190 mm
M3
Mounting (without housing)
Dimensions
