Lifting the RapidCAST System
DO NOT USE THE TENSION ARM AS A LIFT POINT. The tension arm is not load bearing and
could be damaged if it is used as a lifting point.
The system should be lifted by any of the four (4) handles available on the covers. If the covers are re-
moved, the system can be lifted by the frame.
The top handles can accommodate lifting slings if a crane is available for loading. The center of mass is
located approximately where shown in the figure below.

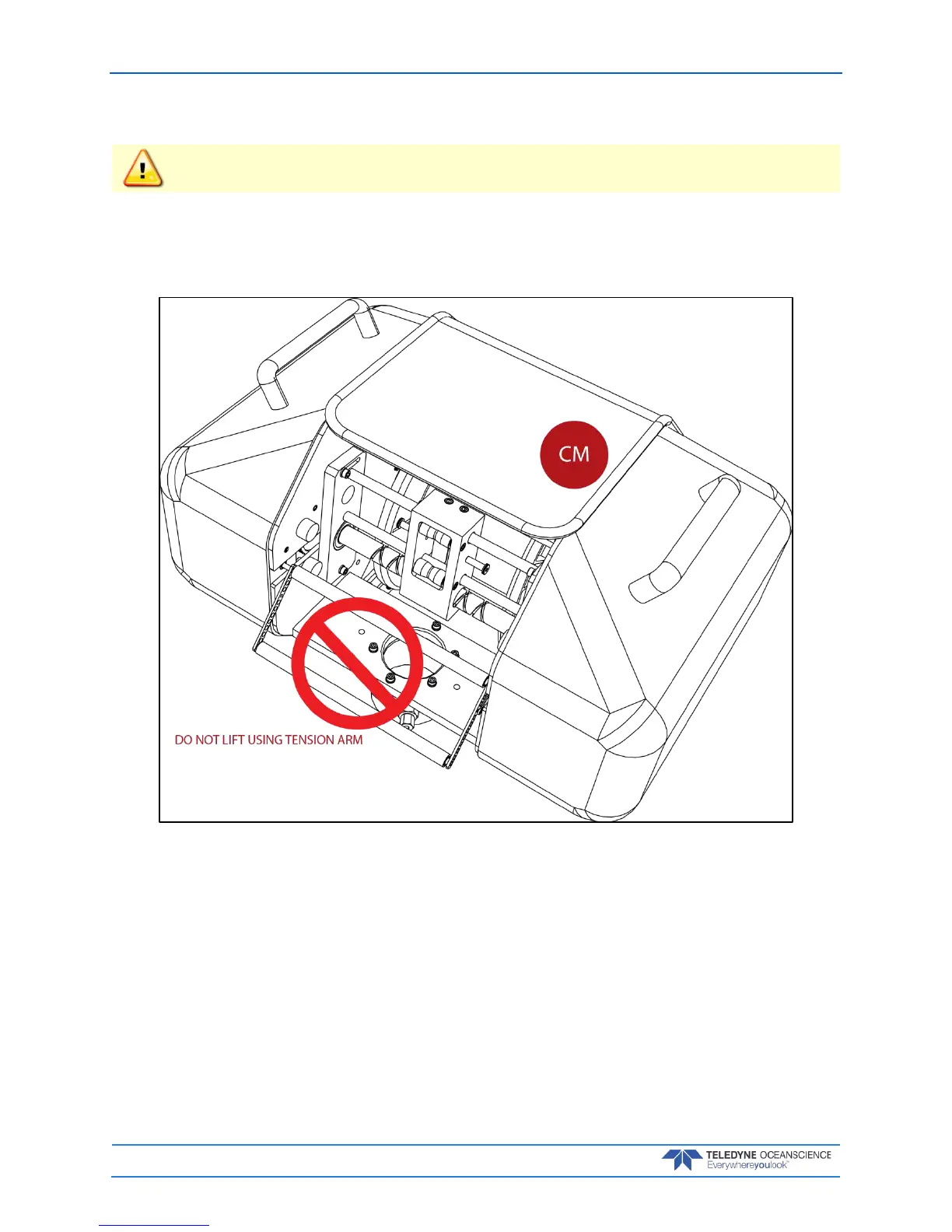

Figure 20. Center of Mass (CM) Location
