Line Routing Procedure
IMPORTANT!!! Follow the lockout procedure before routing the line.
Before routing the line, remove the short section of Duct Tape (PN 9002203) that is securing the line to
the spool. The spools are shipped with the line secured to the spool. Removal of the middle cover may be
necessary.
Line routing procedure:
1. Thru LevelWind rollers.
2. Over tension arm rotational axis roller.
3. Under tension arm outer roller.
4. Under the two horizontal pins in block and thru.

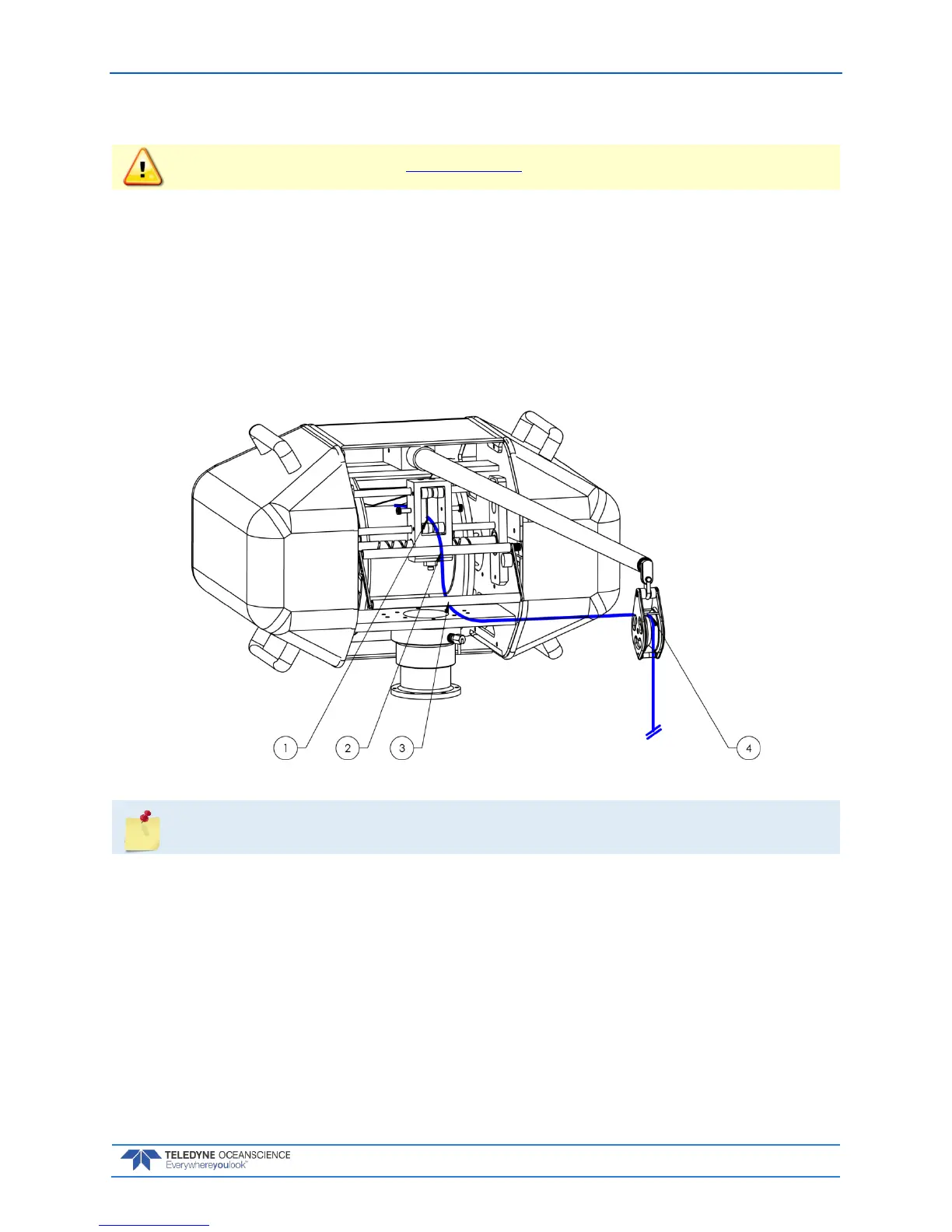

Figure 26. Line Routing Procedure
For shipping and storage, secure the line to the spool using a short 15cm piece of the
included Duct Tape (PN 9002203)
