Page 29
Installing the Control Module
The control module has two standard 1-5/8 inch strut channels located on the back. These will accept
standard pipe mounts (not included). The control module is mounted within 8 feet of the winch and to the
ship’s rail or other available mounting location

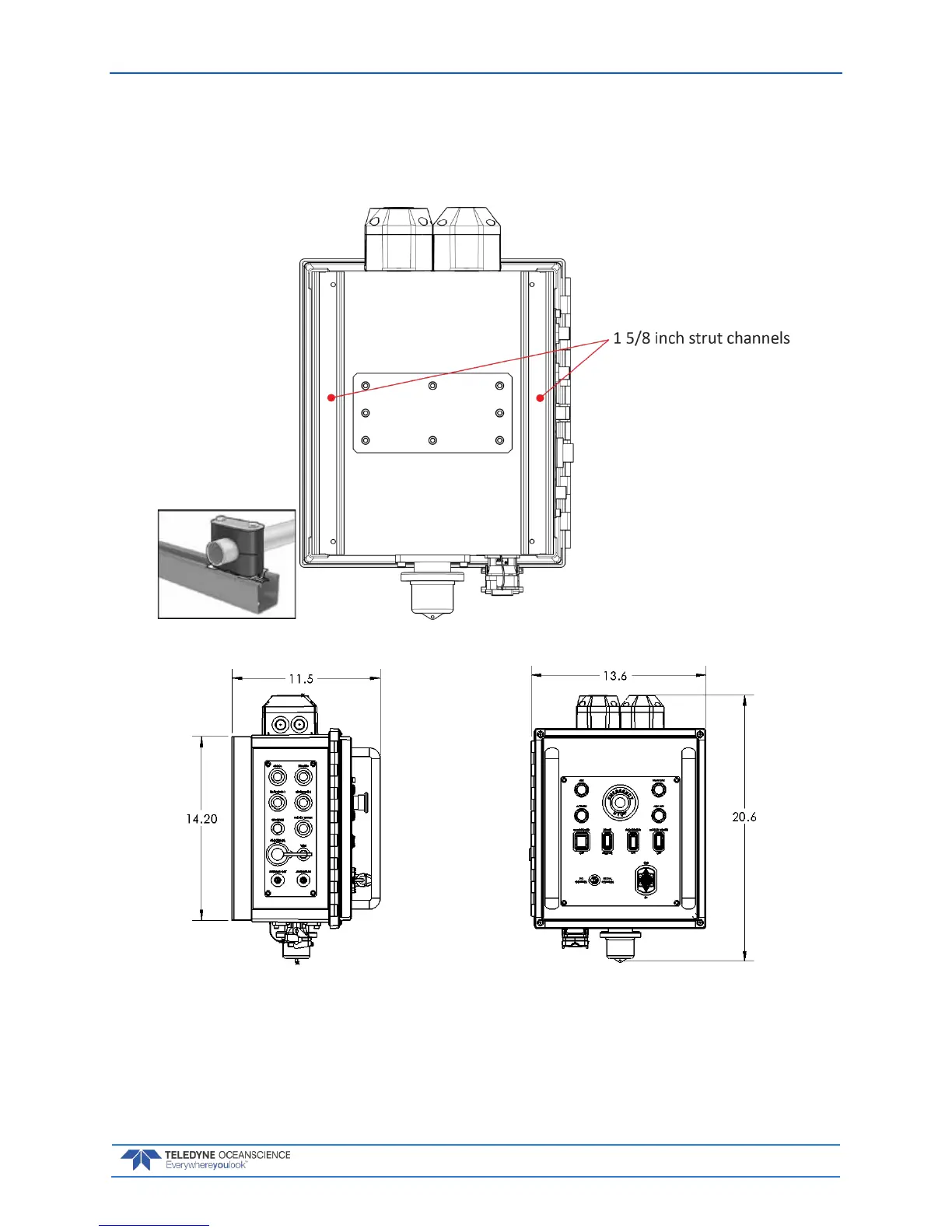

Figure 24. Mounting the Control Module
Figure 25. Control Module Dimensions
