Installing the Pipe Mount
A custom mounting plate is required to mount the Pipe Mount, PN 8000592.
An adapter is available from Oceanscience that will facilitate the installation of a RapidCAST where an
Underway CTD was previously installed. One such adapter is shown below.
Attach the pipe mount to the custom mounting plate using 6 X M6 or 6 X ¼-20 screws as shown below:

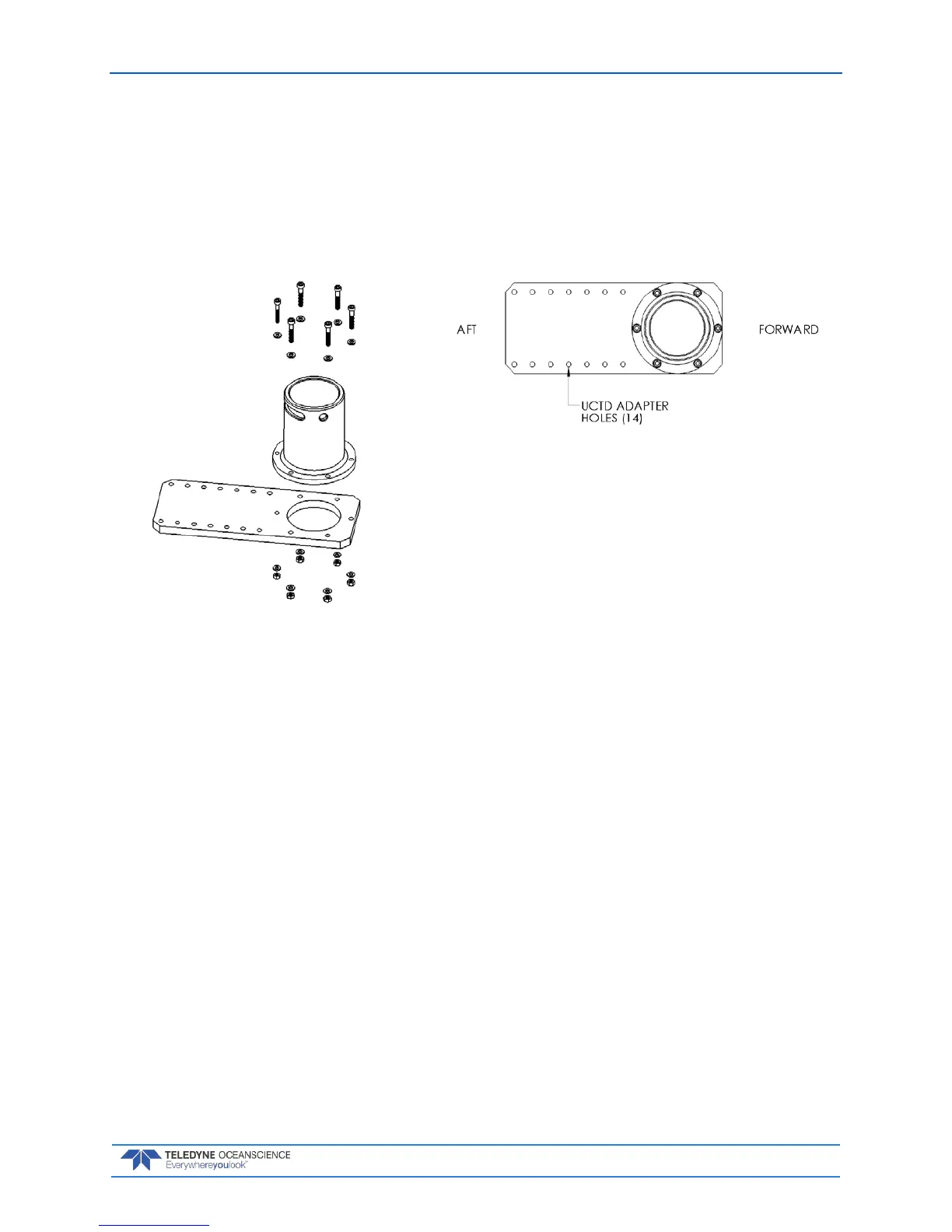

Figure 21. Attaching Pipe Mount Figure 22. Pipe Mount Installed on UCTD Adapter
Plate
