4 INSTALLATION
4.1 Echotrac E20 Mounting
The Echotrac E20 is a flexible unit designed for tabletop or rack mounting. The outer cabinet of the
Echotrac E20 is covered with EPDM rubber, which protects the unit from small bumps etc. and gives
the unit a non-slip surface.
o Mount the Echotrac E20 within easy reach of operator workstation connections, interconnect
cables, and power switch.
Tabletop mounting: Place on a flat surface at a safe distance from edge.
Rack mounting: Use the four holes on the bottom of the unit to secure it to a plate to
be placed in the rack (see Figure 12: Echotrac E20 outline).
o Allow clearance around the unit to provide adequate air circulation.
The unit has an external passive cooling system in the form of a top surface made up of fins
for effective heat transfer.

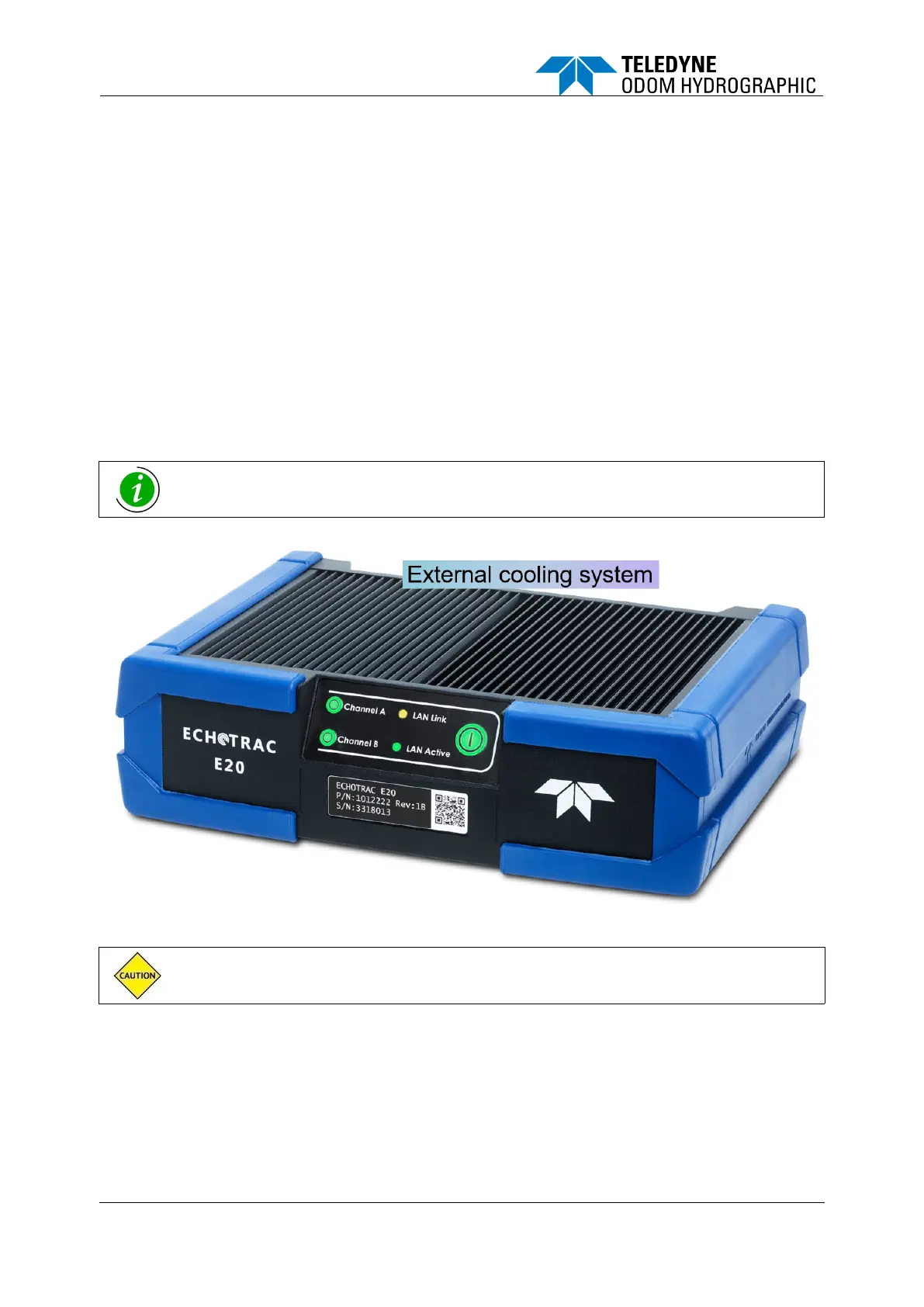

Figure 4: Echotrac E20 – Cooling
Do not place any objects on top of the E20 and do not expose the unit to direct
sunshine, as this may cause the unit to overheat.
