10 Installation and Programming Manual - СА62 Alarm Control Panel

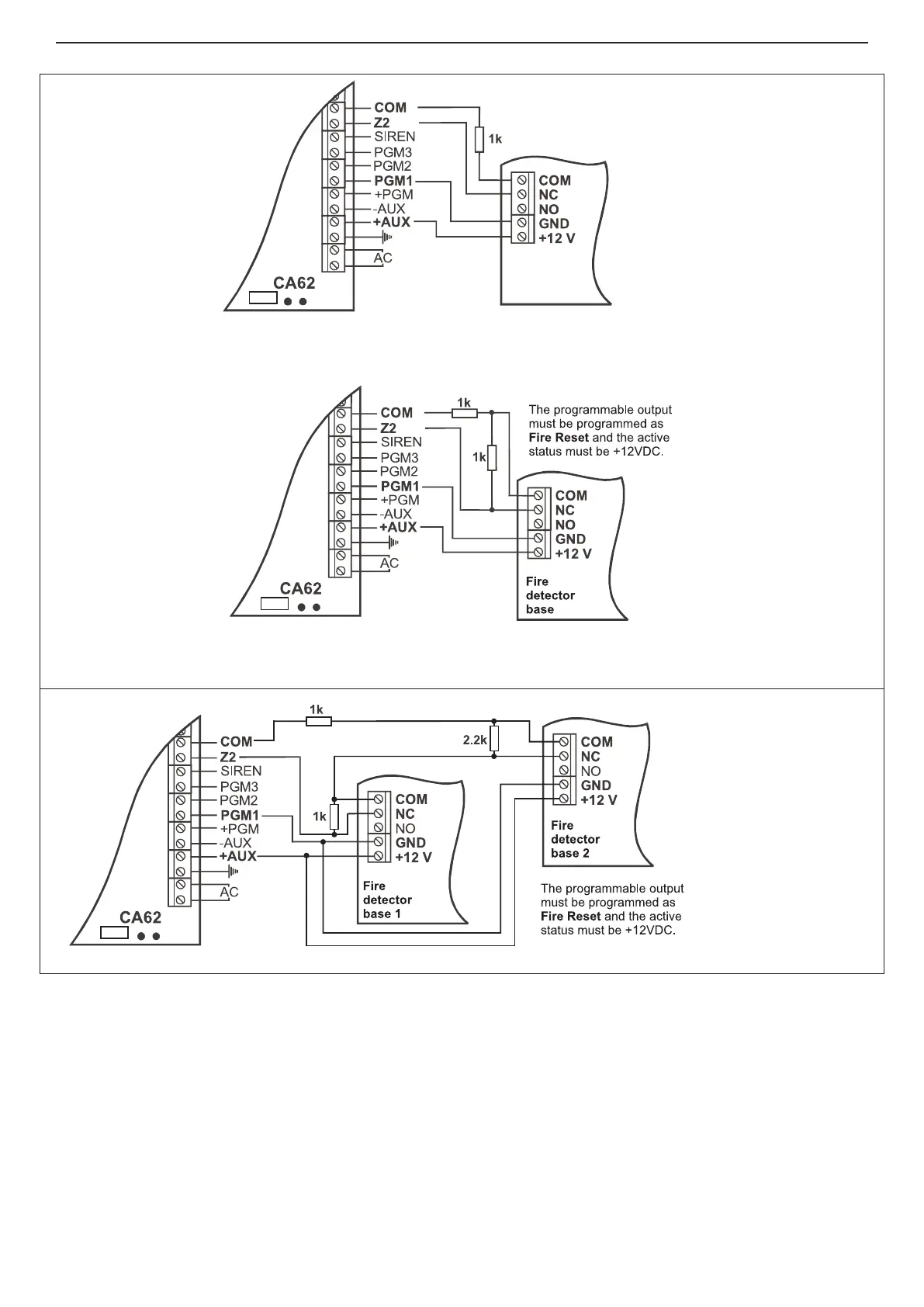

Connecting a re detector with one balancing resistor
Connecting a re detector with two balancing resistors
a) Connecting a re detector with a relay in the base
b) Connecting of two re detectors to a doubling zone.
Figure 7. Connecting a re detector to CA62 alarm control panel.
The programmable output
must be programmed
as and the active
status must be +12 VDC.
Fire Reset
Fire
detector
base
*
* You can use also
two R=510Ω (one R is
connected to every fire
detector), instead of
one R=1k.
To Next Page
