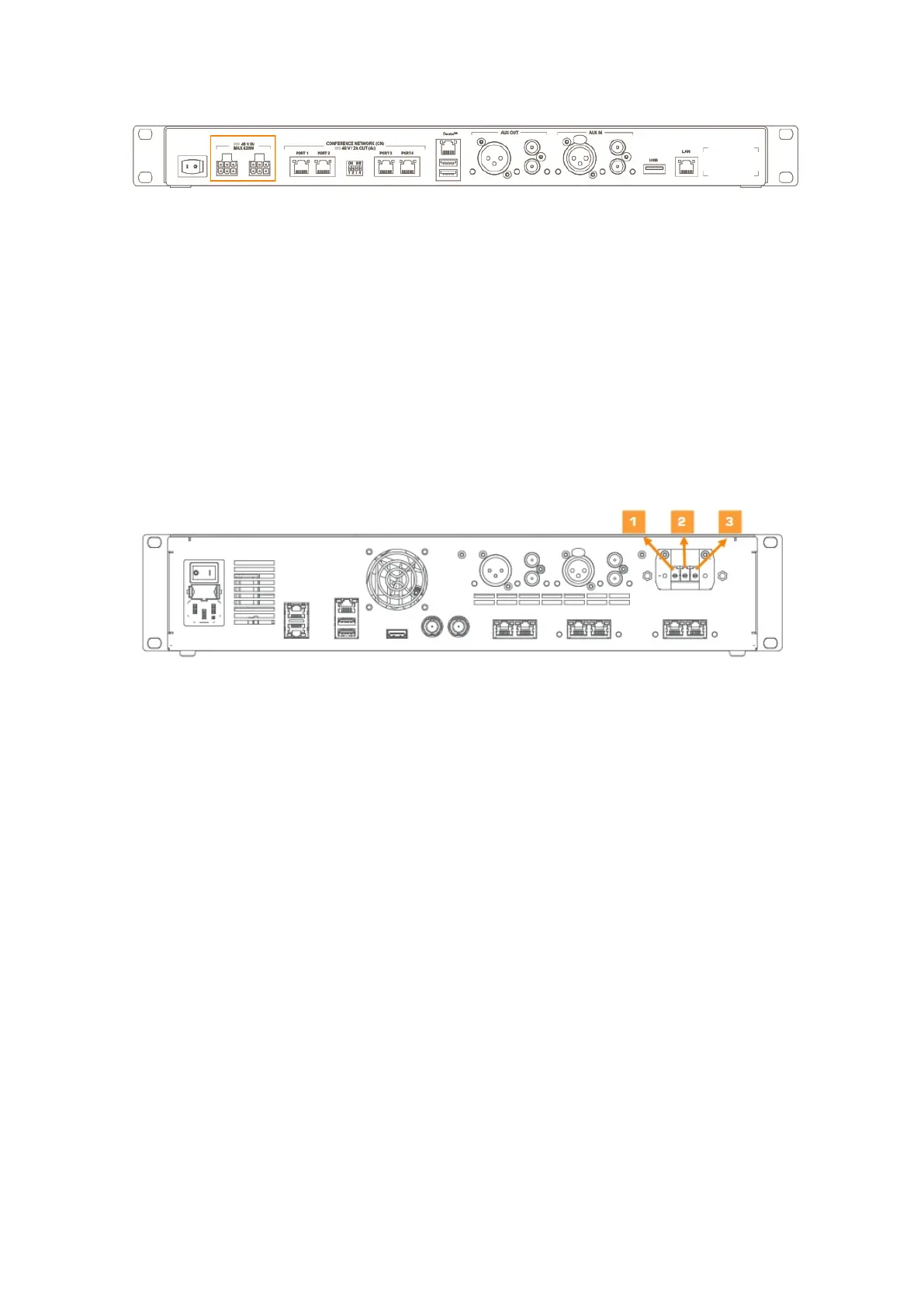

Figure 1-41 How to supply power to the Plixus AE-R
PLIXUS MME
The Plixus MME has an internal power supply. To supply power to the units using the Plixus MME put the
cables in the correct order:
1. Blue cable = 0V
2. Green / yellow cable= earth
3. Brown cable = 48VDC
Figure 1-42 Power connection of Plixus MME
You can supply power the units over Ethernet. Each conference ports can supply a maximum of 100W.
