ML865G1 HW Design Guide

1VV0301632 Rev. 4 Page 23 of 86 2020-09-23

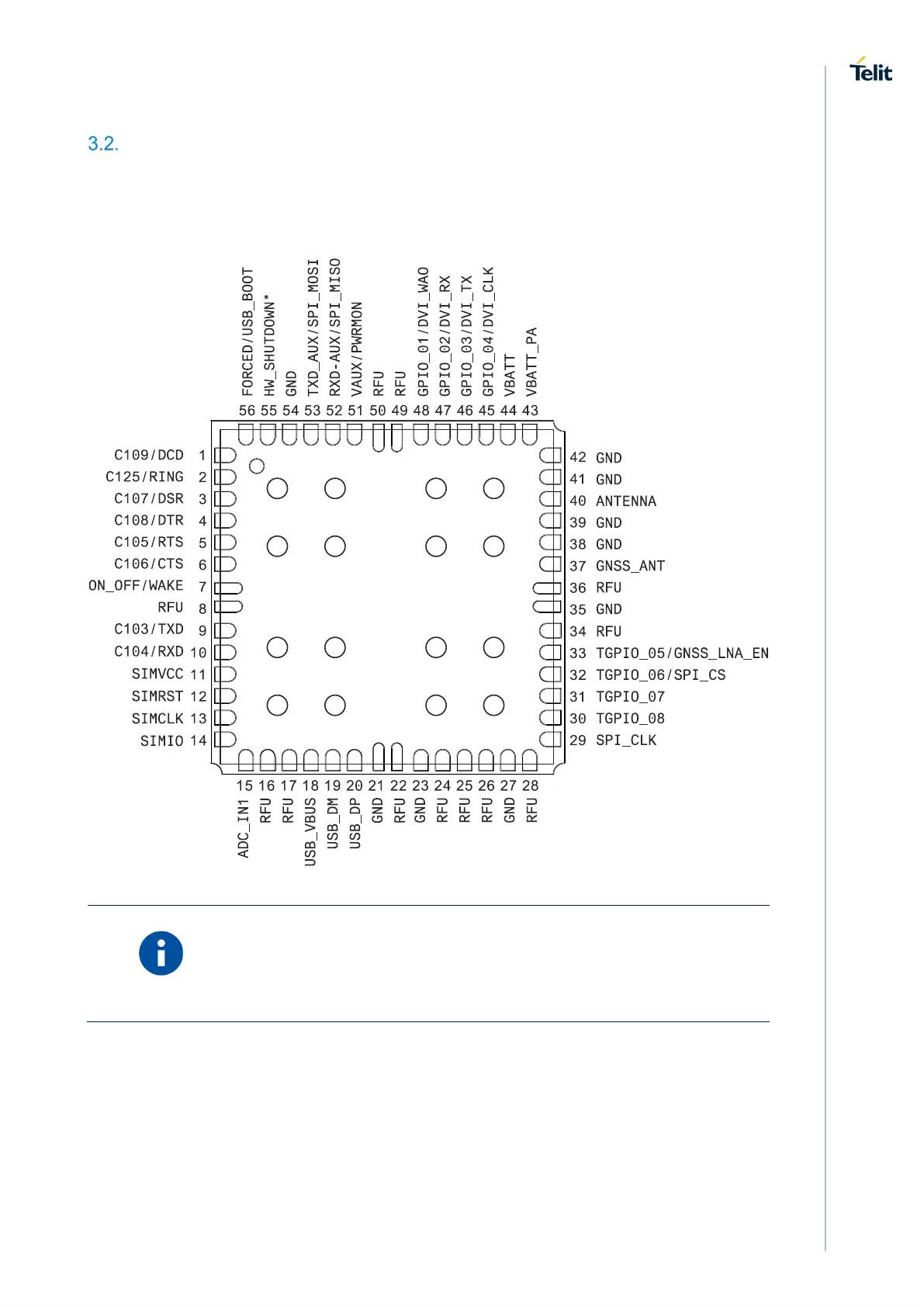

Pin Layout

TOP VIEW

The pins defined as NC/RFU shall be considered RESERVED and

must not be connected to any pin in the application.
