Solder paste
Item Lead Free
Solder Paste Sn/Ag/Cu
We recommend using only “no clean” solder paste in order to avoid the cleaning of the
modules after assembly
Solder Reflow

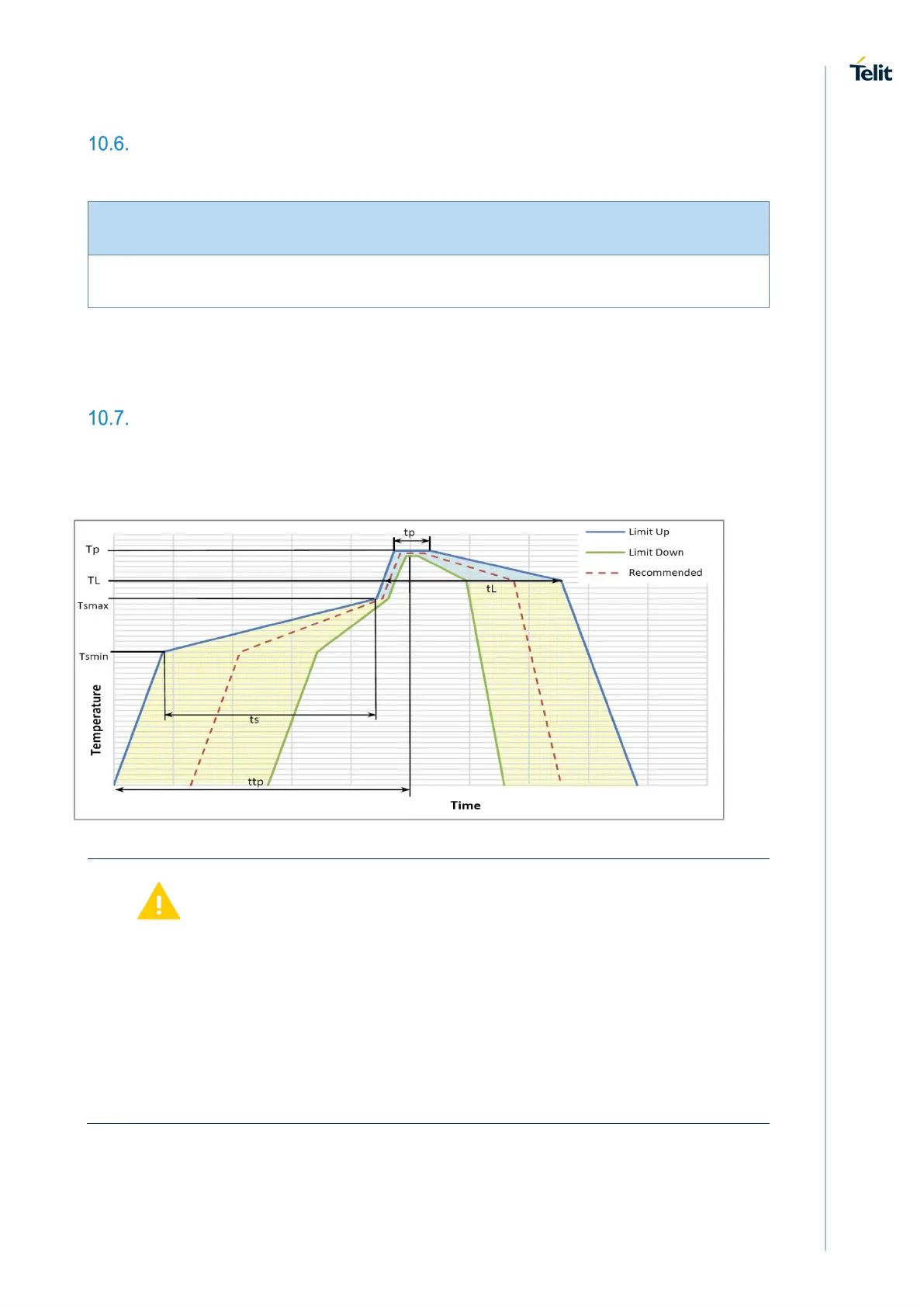

Recommended solder reflow profile:
WARNING:
The above solder reflow profile represents the typical SAC reflow
limits and does not guarantee adequate adherence of the module to
the customer application throughout the temperature range.
Customer must optimize the reflow profile depending on the overall
system taking into account such factors as thermal mass and
warpage..
