ML865G1 HW Design Guide
1VV0301632 Rev. 4 Page 67 of 86 2020-09-23
8.2.2. Hardware-based solution for GNSS and LTE coexistence
When in the user application a stand-alone GNSS receiver is present, the LTE transmission
may desensitize the GNSS receiver in particular if the decoupling between LTE and GNSS
antennas is low. A SAW filter can be added on LTE side, to protect GNSS receiver from

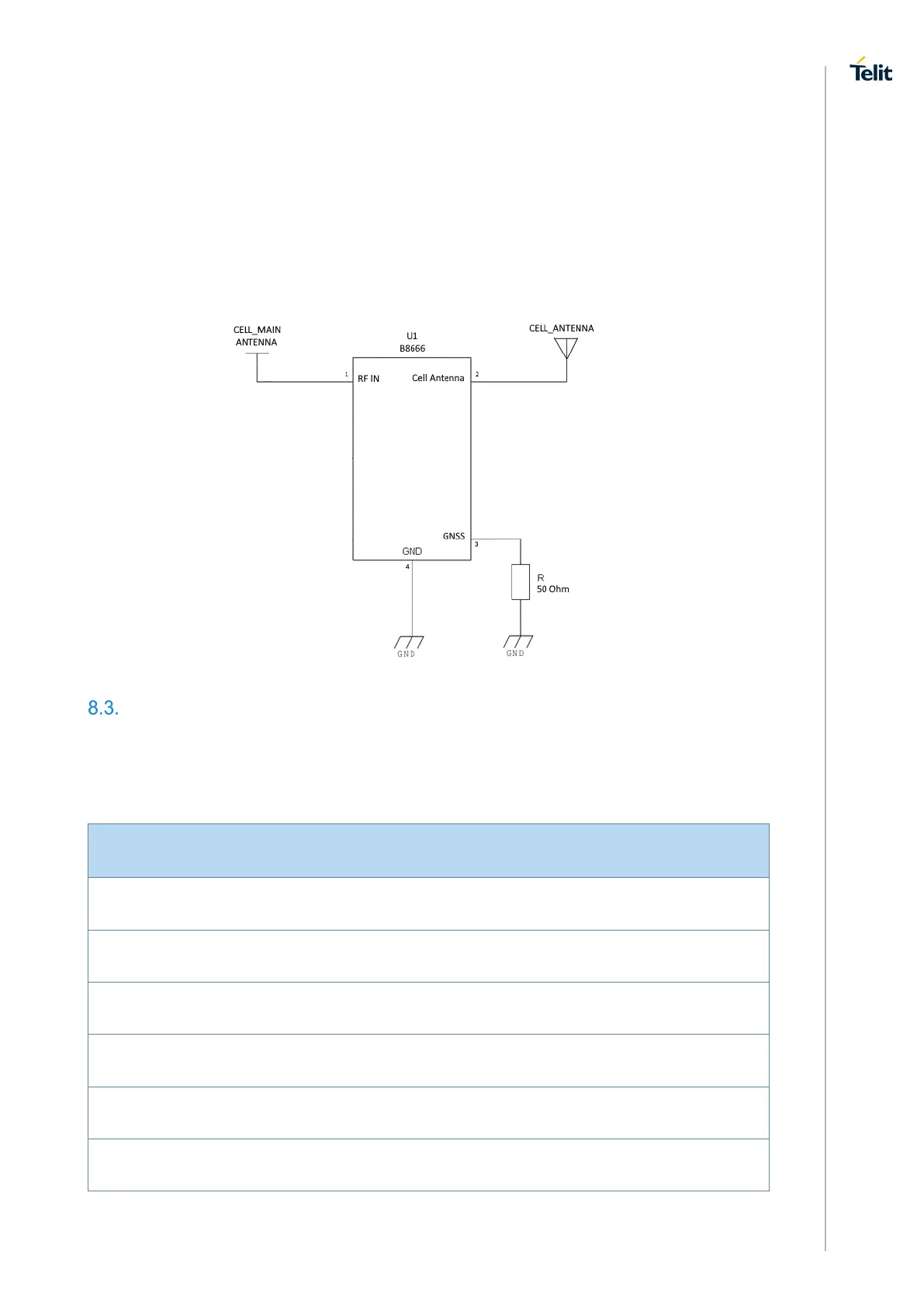

LTE out-of-band emissions, as described in the schematic below.
When the GNSS receiver embedded in the ML865G1 module is used, there is no condition
for degradation, because LTE part and GNSS part are never active simultaneously,
therefore the filtering on the LTE side is not needed.
GNSS Antenna Requirements
GNSS active antenna must be used or integrated in the application.
8.3.1. GNSS Antenna specification
Item Value
Frequency range 1559.0 ~ 1610.0 MHz
Gain 20 ~ 30dB
Impedance 50 ohm
Noise Figure of LNA < 1.5 (recommended)
DC supply voltage DC 1.8 ~ 3.3V
VSWR ≤ 3:1 (recommended)
