ML865G1 HW Design Guide

1VV0301632 Rev. 4 Page 63 of 86 2020-09-23

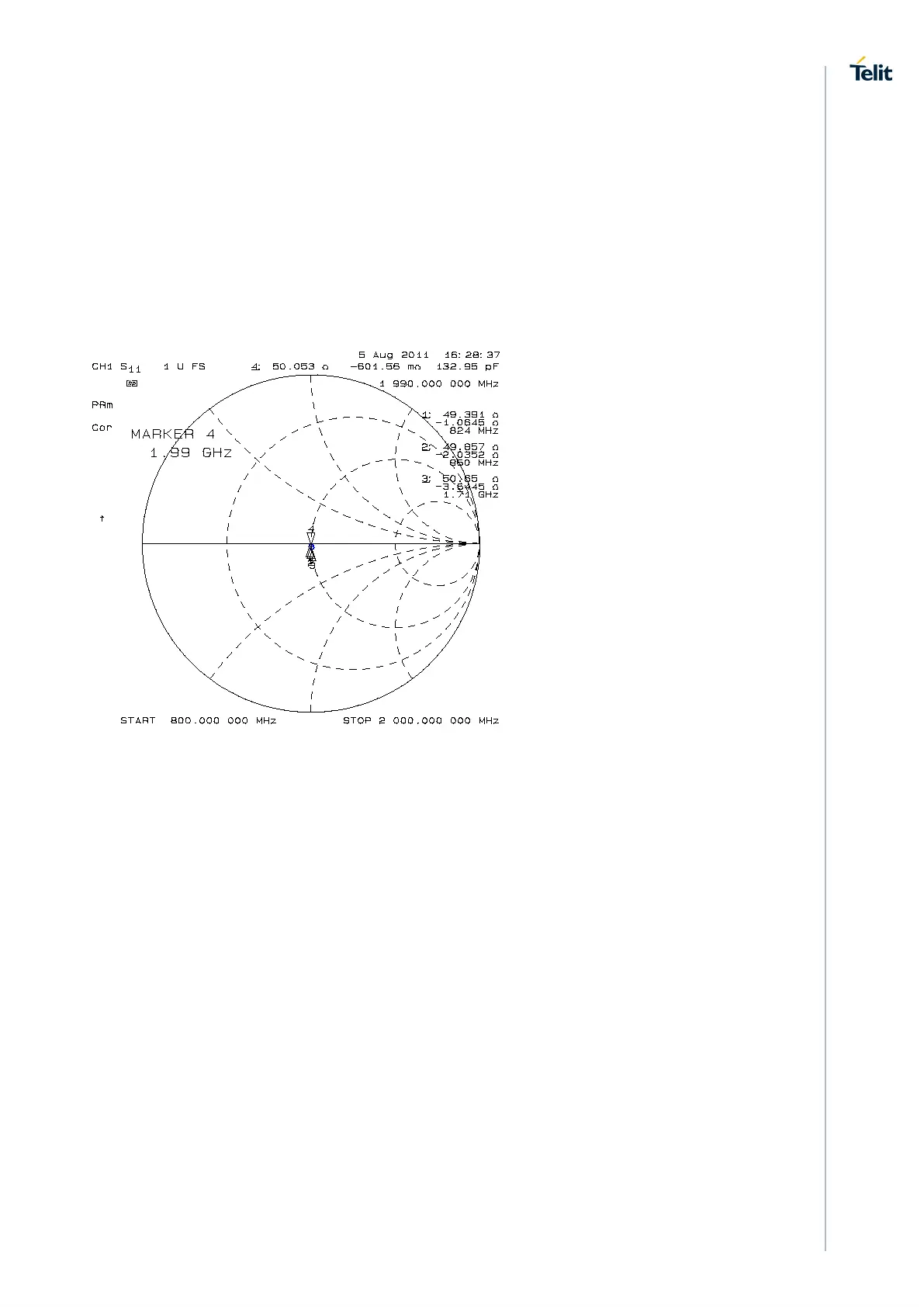

Line input impedance (in Smith Chart format, once the line has been terminated to 50 Ω

load) is shown in the following figure:

Insertion Loss of G-CPW line plus SMA connector is shown below:
