Description and Specifications
Page 1-2

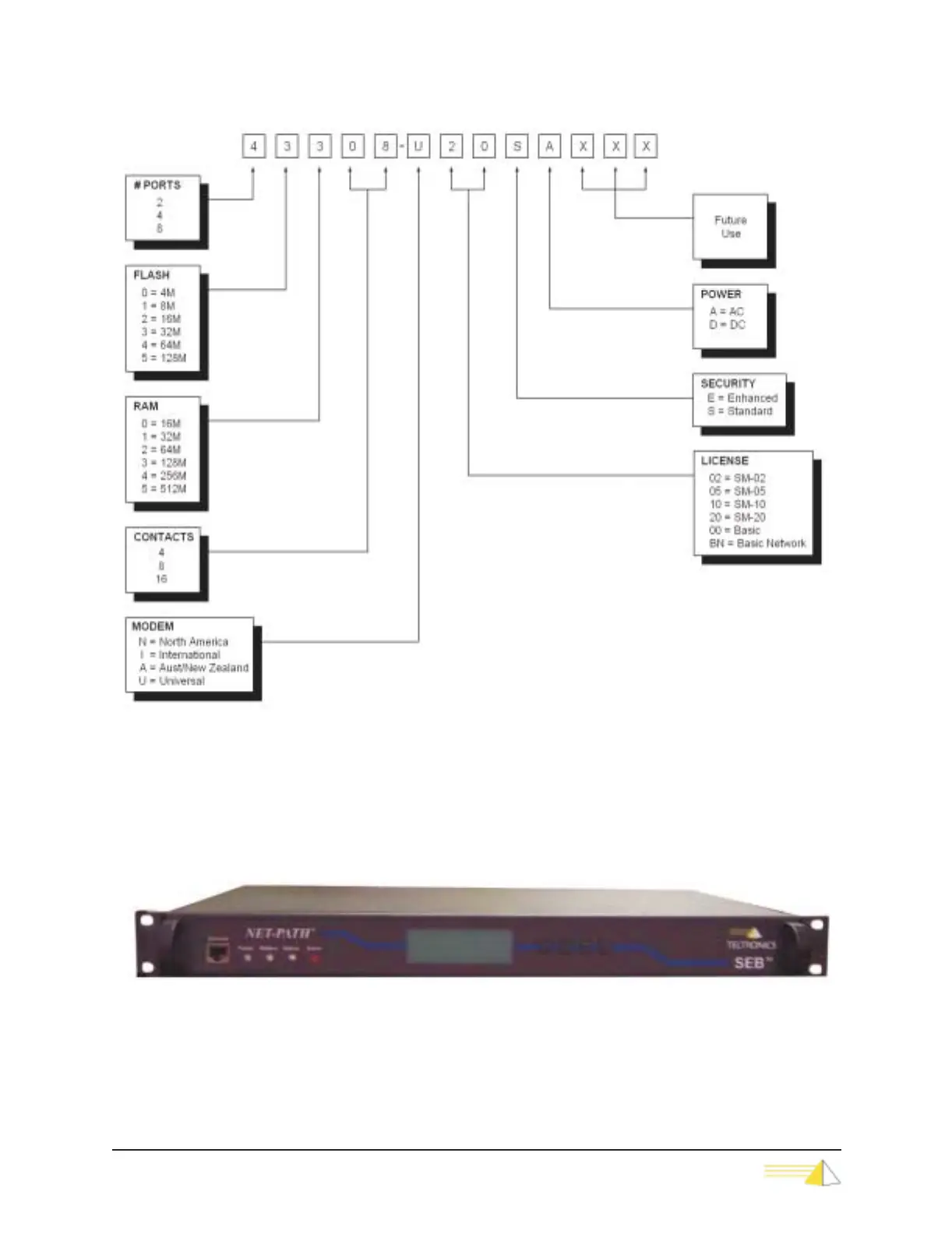

Figure 1-1 NET-PATH Model Number Format
All basic units have four or eight host ports. Technicians can use one of these ports as
a dedicated local port, or as a standard host port.
Description The NET-PATH is housed in an aluminum case as shown in the following figure.
Figure 1-2 NET-PATH
Connections for commercial power, the host systems, external sensors, terminal, and
the telephone line are on the back of the unit. See “Connections” on page 2-3. The
LED status indicators on the front indicate the power status, battery charge status,
application or database validity, and alarm conditions. See “Console Connector” on
page 4-1.
