Installation
Page 2-10
Contact Sensor
Wiring Tables

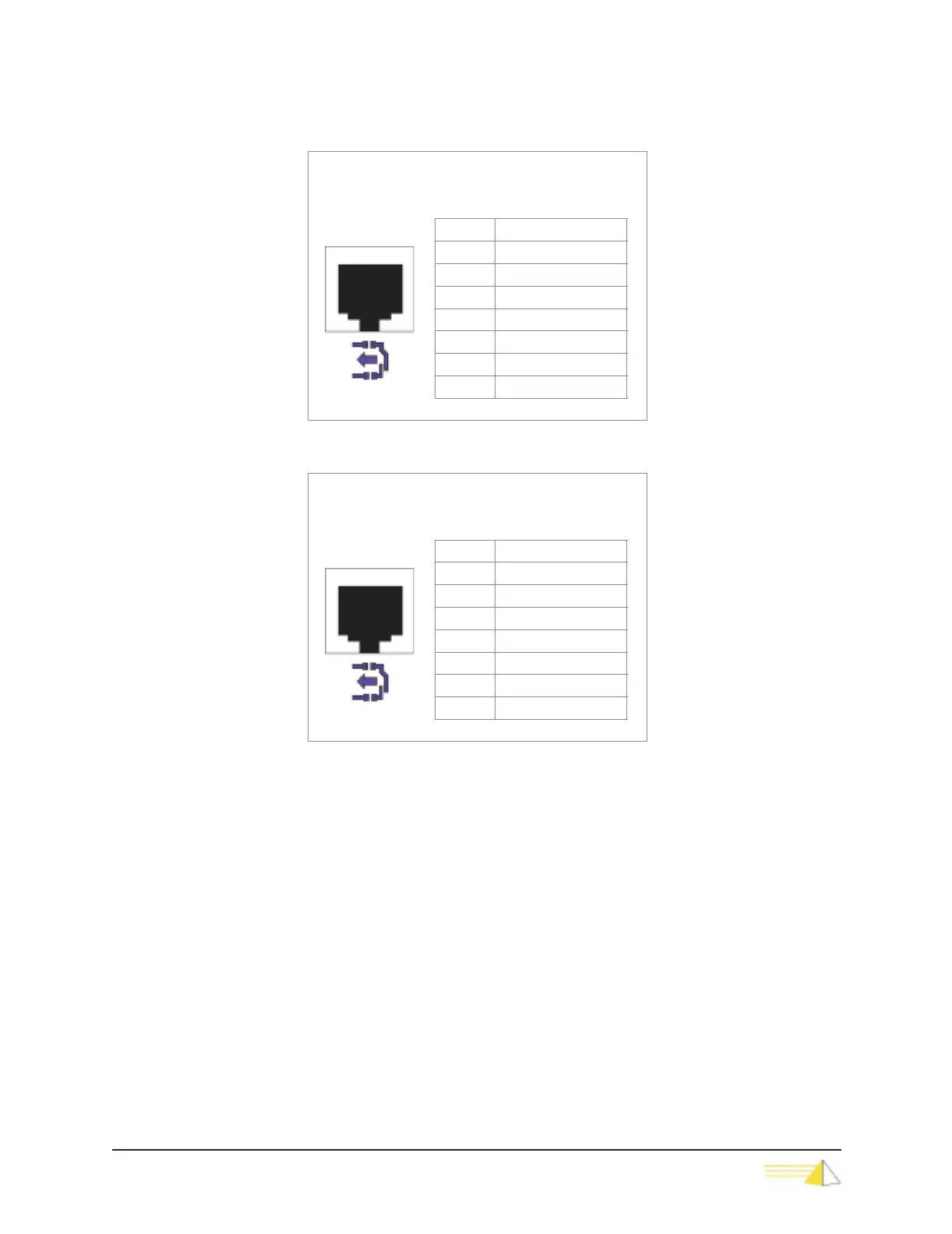

Figure 2-11 RJ45 Wiring Table - Contact Sensors 1 - 4
Figure 2-12 RJ45 Wiring Table - Contact Sensors 5 - 8
NET-PATH four-port models support contact sensors 1– 8.
Contact Sensors 1 - 4
RJ45 Connector
8 Pin Female
Pin # Contact Sensor Inputs
1 Sensor 4+
2 Sensor 3+
3 Sensor 2+
4 Sensor 1+
5 Sensor 1 Gnd
6 Sensor 2 Gnd
7 Sensor 3 Gnd
8 Sensor 4 Gnd
Contact Sensors 5 - 8
RJ45 Connector
8 Pin Female
Pin # Contact Sensor Inputs
1 Sensor 8+
2 Sensor 7+
3 Sensor 6+
4 Sensor 5+
5 Sensor 5 Gnd
6 Sensor 6 Gnd
7 Sensor 7 Gnd
8 Sensor 8 Gnd
