Teltronics SEB NET-PATH User Manual

Installation
Page 2-14

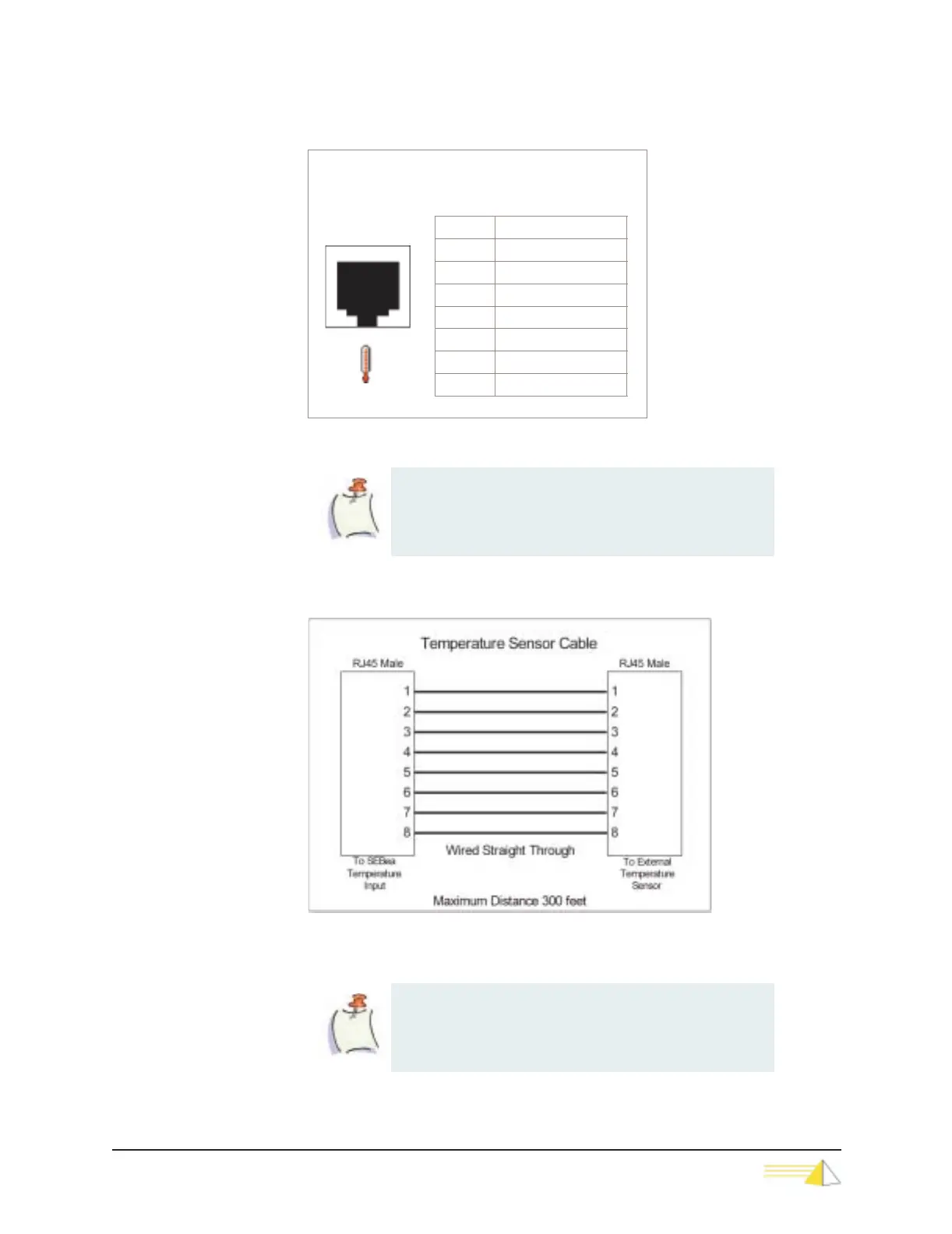

Temperature Sensor Internal Wiring Table
Figure 2-18 Temperature Sensor Internal Wiring Table
Figure 2-19 Temperature Sensor Cable Connections
Temperature Sensor
RJ45 Connector
8 Pin Female
Pin # Temp Sensor Inputs
1 Not used
2 Not used
3+5
4Clock
5Data
6Gnd
7 Not used
8 Not used
Note The cable that connects the external temperature
sensor to the NET-PATH must be wired straight through,
as shown below.
Note The cable that connects the external temperature
sensor to the NET-PATH must be wired straight through,
as shown below.
