NET-PATH Installation and Operation Guide
Page 2-3
Connections Connect the host port lines, telephone line, physical sensors, network connections, and
power supply connections to the appropriate sockets on the NET-PATH connection
panel.

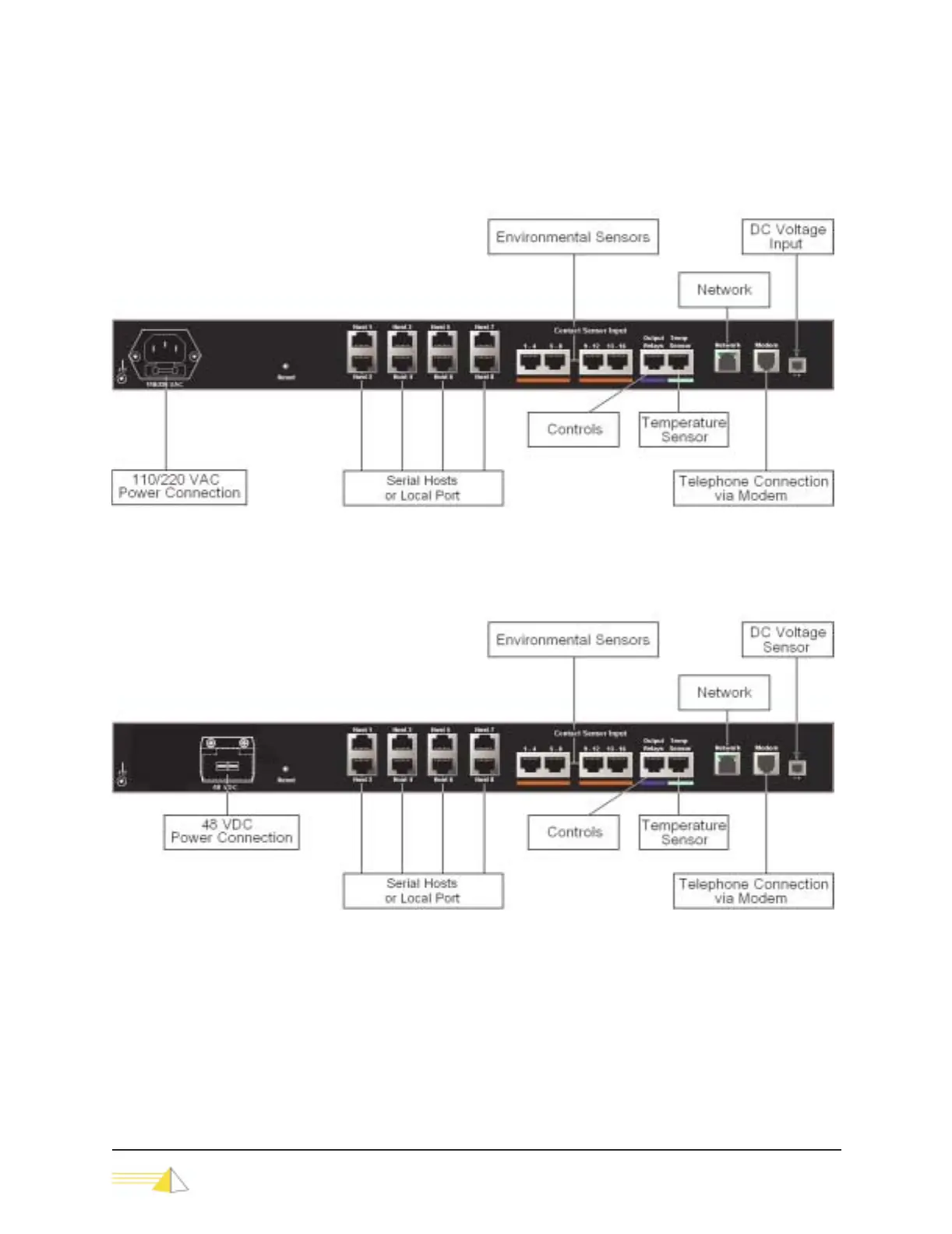

Figure 2-3 NET-PATH Connection Panel with 110/220 VAC Power Connection
Figure 2-4 NET-PATH Connection Panel with 48 VDC Power Connection
