Output Relay Specifications
The relays are designed for low current applications based on the following relay
specification.
• Max power: 45VA Max
• Max Voltage: 150VDC/VAC Max
• Max Current: 300ma Max
Output Relays Internal Wiring Table

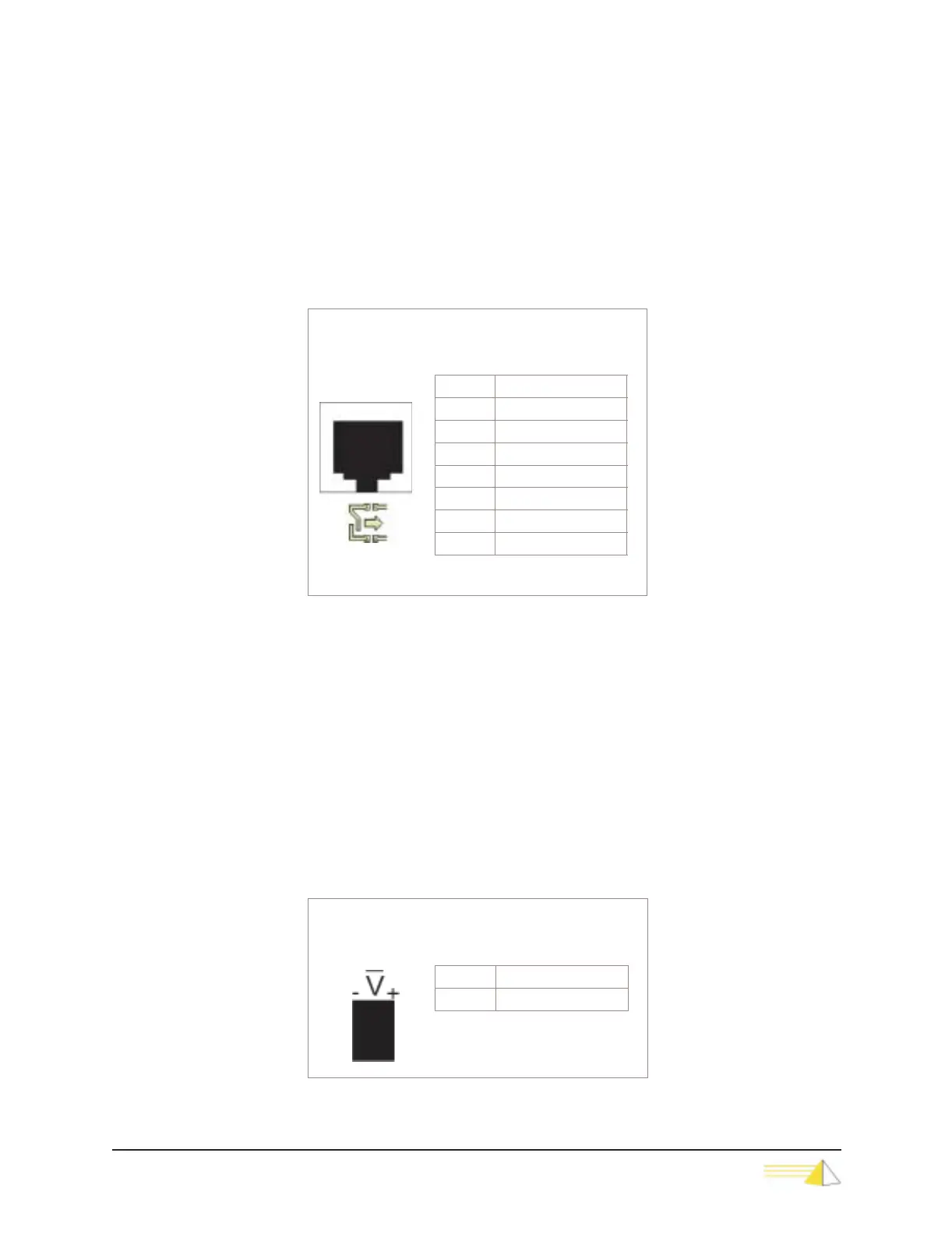

Figure 2-15 Output Relays Internal Wiring Table
Connect to normally open or normally closed outputs to obtain the desired connection
state when the NET-PATH is powered off. The NET-PATH database has options to set
the state of the relay to a known state after the database is loaded. From there the relay
can be controlled manually or automatically through database parameters.
Voltage Sensor The NET-PATH has one DC voltage sensor. The range of measurement is 0 - 60 VDC,
with an accuracy and resolution of +/- .5 VDC. An optional 6 foot cable is available to
support the DC voltage sensor feature. This sensor measures and reports the
difference between the two input leads. Polarity must be observed. If polarity is
reversed the reported values will be excessively high.
DC Voltage Sensor Internal Wiring Table
Figure 2-16 DC Voltage Sensor Internal Wiring Table
Output Relays
RJ45 Connector
8 Pin Female
Pin # Contact Sensor Inputs
1 C2 Norm Open
2 C2 Norm Closed
3 C2 Common
4 Not used
5 Not used
6 C1 Norm Open
7 C1 Norm Closed
8 C1 Common
RJ45 Wiring Table
DC Voltage Sensor
2 Pin Header Pin # DC Voltage Inputs
1 - Left Negative
2 - Right Positive
