Teo IP Phone 4101 Installation Instructions
Page 12 13-280135 Rev. K

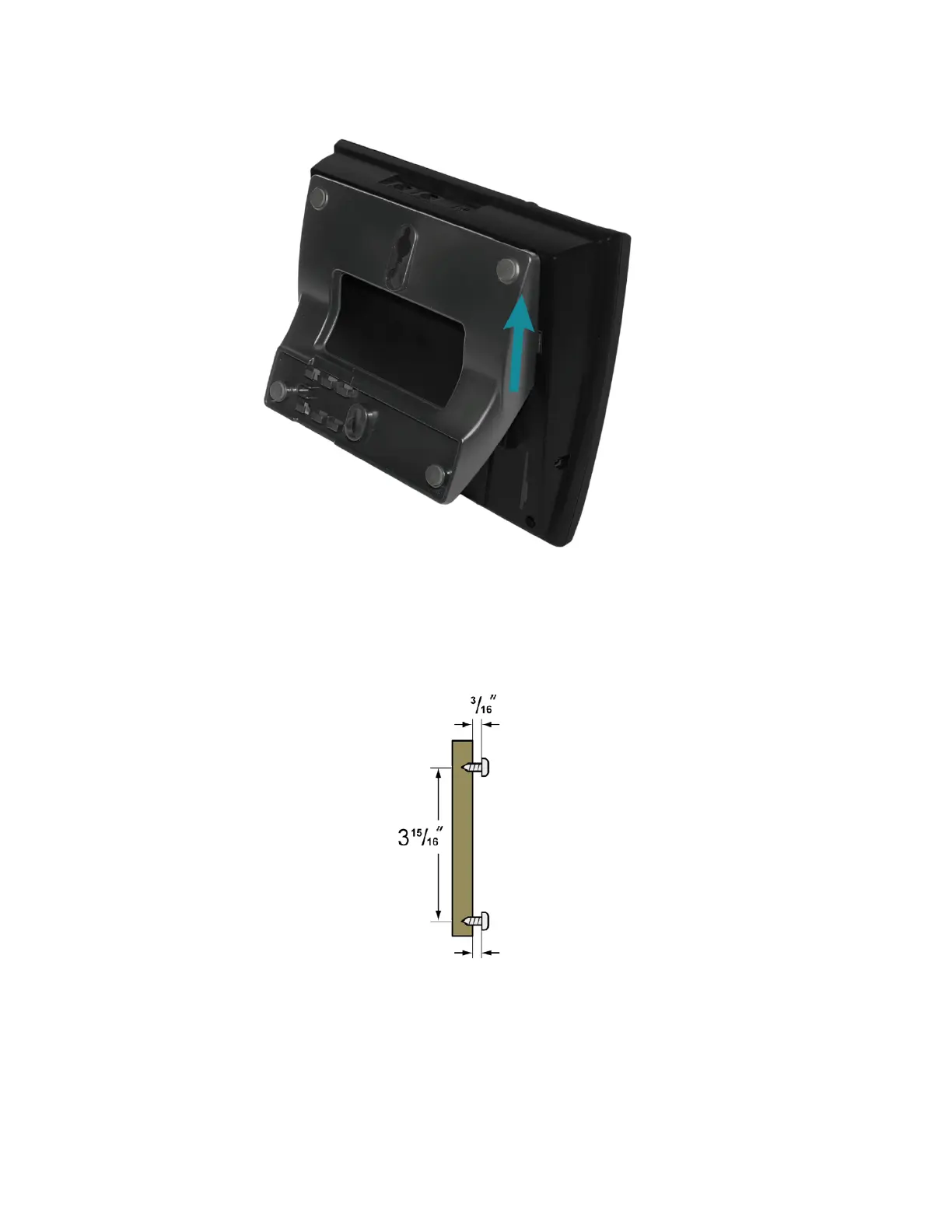

• Insert the base tabs in to the upper slots on the phone, and then slide the base
upward to lock it into place.
• On the wall or a wall plate, drill two holes with a distance of 3
15
/
16
inches apart. If
drilling into drywall only, make sure to install an anchor system for the screws.
• Thread a screw into each hole with each head extending about
3
/
16
inch from the wall
or wall plate.
• Connect the AC power adapter, LAN and PC cords (pages 10-11).
• Route the cords through the base if needed (page 10).
To Next Page
