Tera 2I386EW - Jvl1: Lcd Panel Power Select; Jvc1: Com1 Pin9 Ri; +12 V; +5 V Selec

24

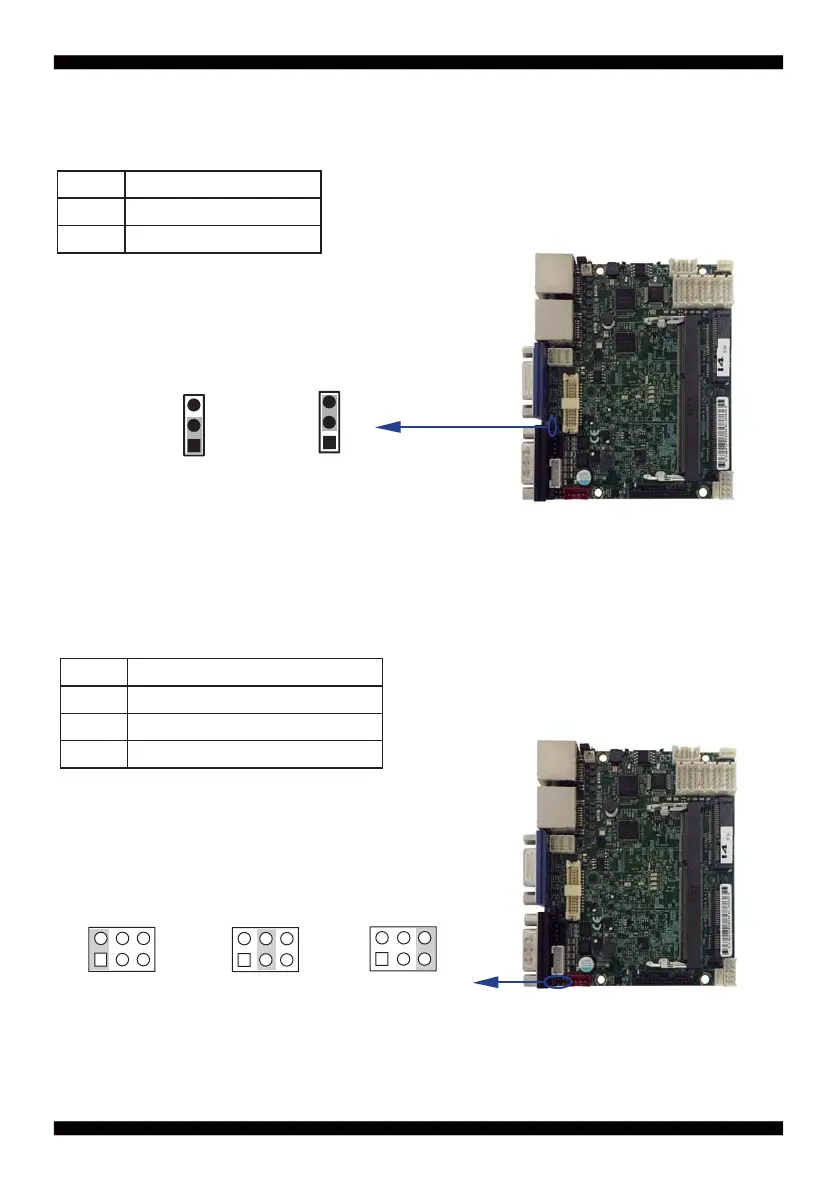

2-9 JVL1: LCD panel power select (OEM)
Note: Attention! Check Panel Power in spec
JVL1 DESCRIPION
1-2 +5V
*2-3 +3.3V
2-10 JVC1: COM1 PIN9 RI / +12V / +5V Selec
JVC1 DESCRIPION
*1-2 COM port pin9 use RI signal
3-4 COM port pin9 use +5V voltage
5-6 COM port pin9 use +12V voltage
*RI Signal
+5V
+12V
462
462
462
JVC1
135
135
135
JVL1
1
2
3
+5V
*+3.3V
1
2
3
