Tera 2I386EW - Panei Inverter Power Interface; DC +12 V; +5 Voltage Power Output

52

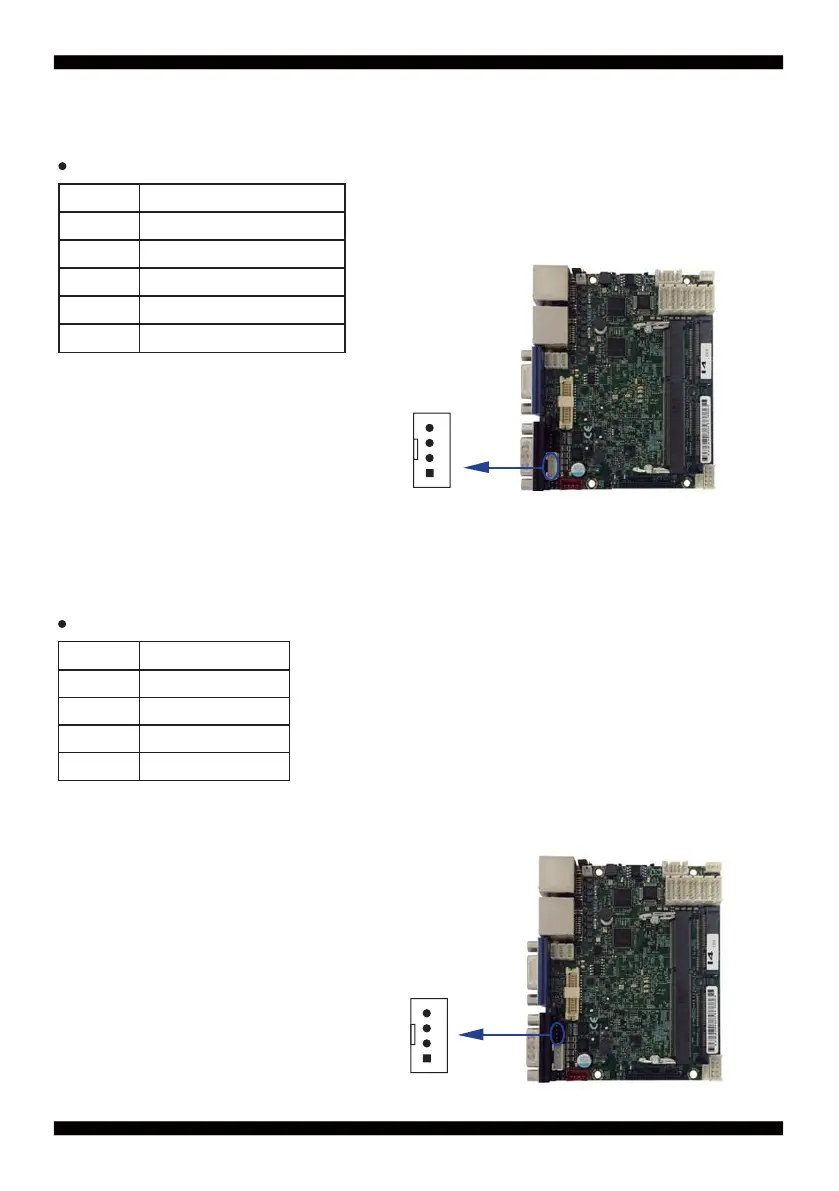

CPO1: +12V / +5V DC voltage output 1x4pin (2.0mm) Wafer (Black)
3-13 DC +12V / +5 Voltage Power Output
* Note: Attention! Check Device Power in spec
CPO1
pin1
PIN NO. Description
1 +5V
2 GND
3 GND
4 +12V *
CPP1: Panel POWER 1x5pin (2.0mm) Wafer
3-12 Panei Inverter Power Interface (OEM)
PIN NO. Description
1 +12V
2 GND
3 PWM dimming
4 ENBKL (3.3V)
5 ENBKL (5V)
CPP1
pin1
