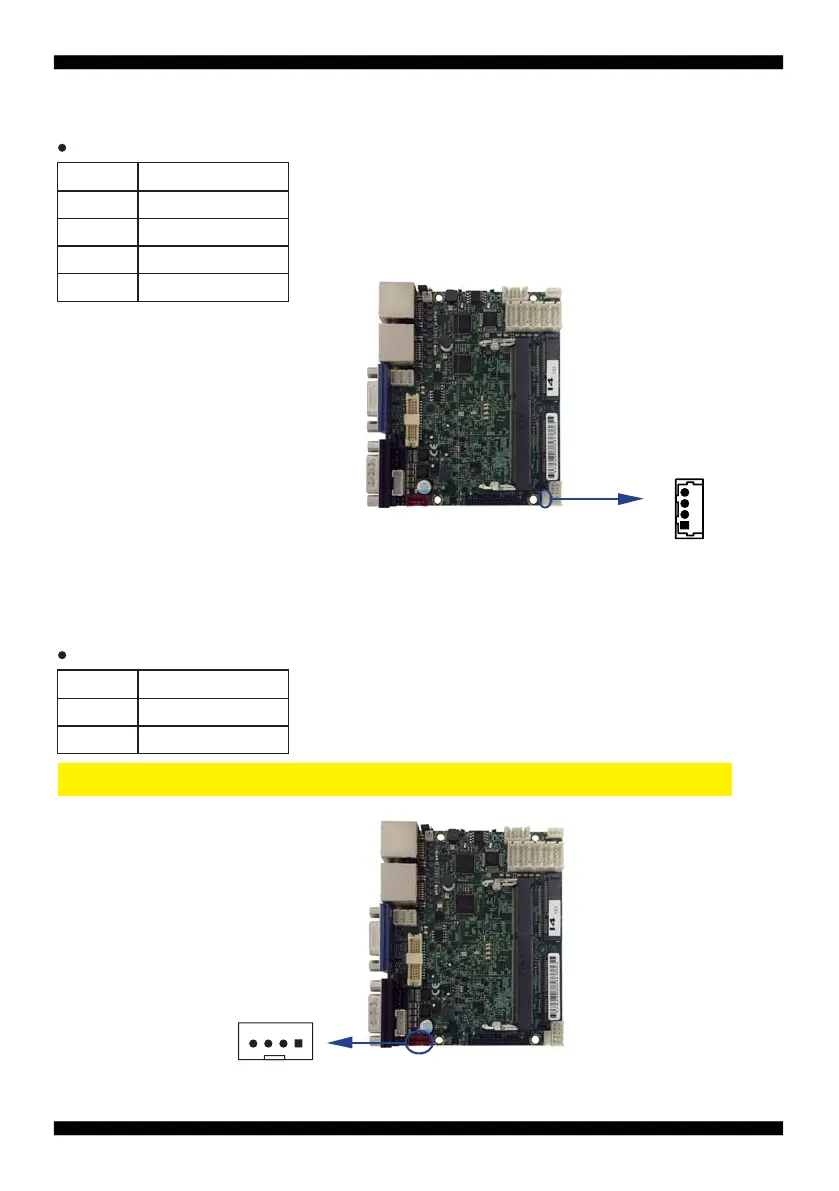

Tera 2I386EW - Bus Interface; DC Power Input

51
CO1: I
2
C Bus 1x4pin (1.25mm) Wafer
CPI1: DC-in 1x4 (2.0mm) Wafer Internal connector (Red)
3-10 I
2
C Bus Interface
PIN NO. Description
1 +3.3V
2 GND
3I
2
C Clock
4I
2
C DATA
PIN NO. Description
2,3 DC-IN (12V, 24V)
1,4 GND
CO1
pin1
3-11 DC Power Input
Note: Very important check DC-in Voltage type for 12V or 9~48V model spec
CPI1
pin1
