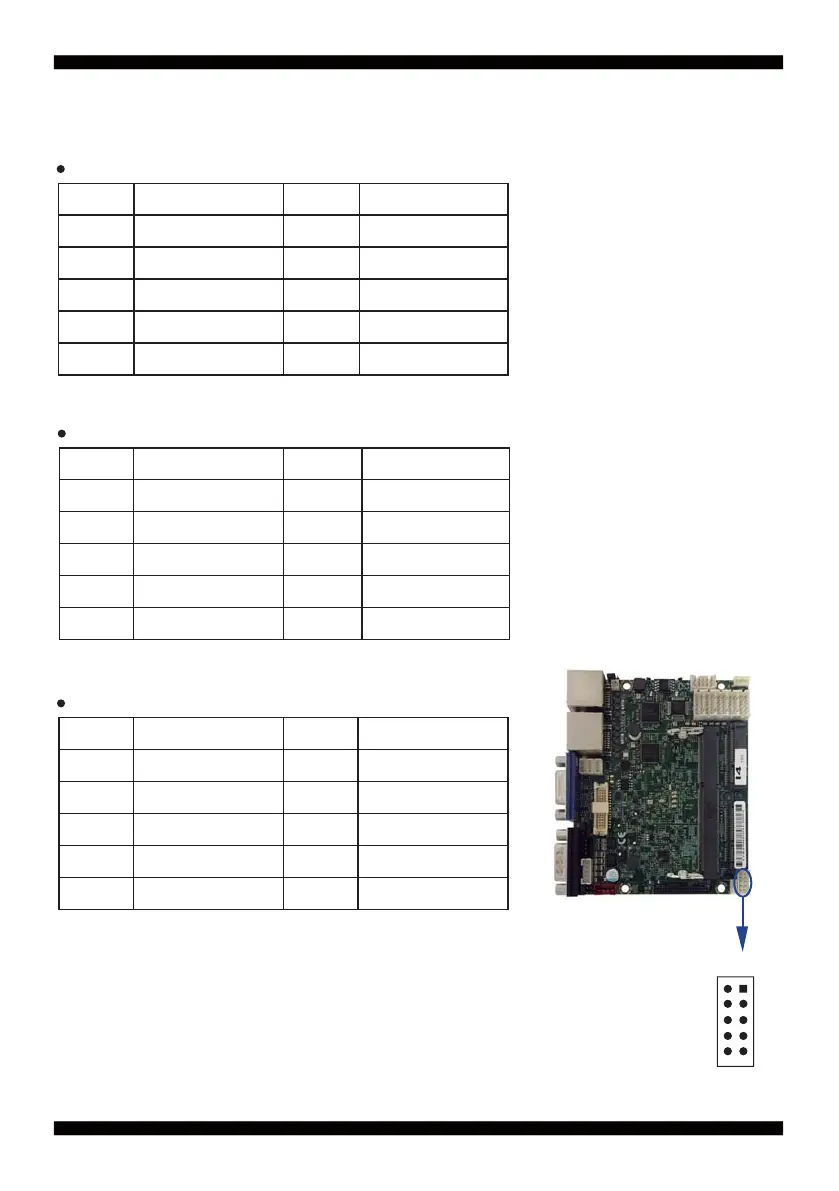

3-14 Touch screen (2x5pin 2.0mm wafer) USB interface (OEM)

CT1: For 8-wire type pin deﬁ ne

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 Bottom 2 Bottom Sense

3 Top Sense 4 Top

5 Right 6 Right Sense

7 Left 8 Left Sense

9 GND 10 NC

Note: For eight wire type cable Pin 3 and Pin4 need short

CT1: For 4-wire type pin deﬁ ne

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 Bottom 2 N/A

3 N/A 4 Top

5 Right 6 N/A

7 Left 8 N/A

9 GND 10 KEY

Note: 1. For four wire type cable Pin 3 and Pin4 need short.

CT1: For 5-wire type pin deﬁ ne

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 UR(H) 2 N/A

3 Sense 4 UL(Y)

5 LR(X) 6 N/A

7 LL(L) 8 N/A

9 GND 10 KEY

CT1

pin1
