MPCE1 : Full size mini card port 1 sockets 52pin

MPCE2 : Full size mini card port 2 sockets 52pin

EIO1: eIO port 2x20 pin (1.27mm) Wafer

SODIMM1: DDR3L-SODIMM sockets 204pin

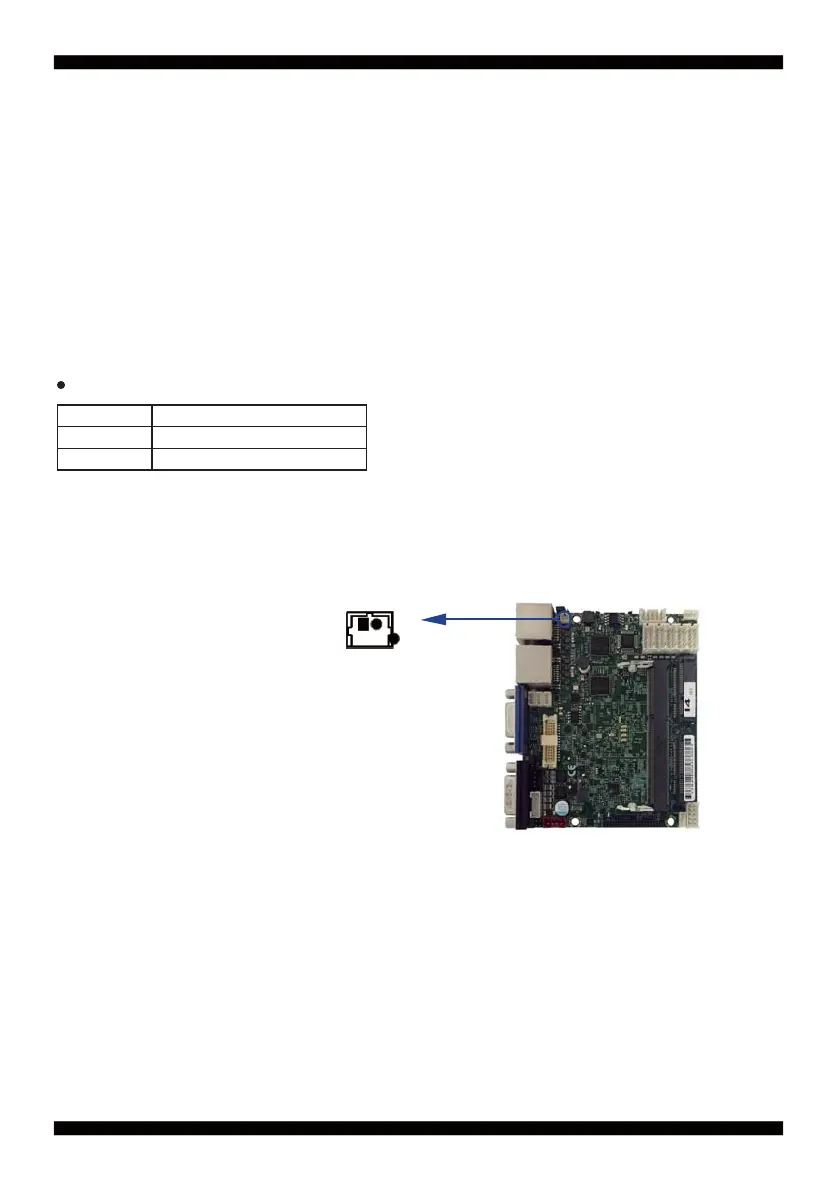

3-2 CMOS battery connector

Note:

1.When board without Adaptor plug in, this board power RTC consumption 2.7uA

2.If adaptor always plug in RTC power consumption 0.1uA

CBT1: CMOS Battery 1x2pin (1.25mm) Wafer

PIN NO. DESCRIPTION

1 GND

2 +3V

CBAT1

pin1
