Tera 2I386EW - Audio Interface; Audio Amplifier

27

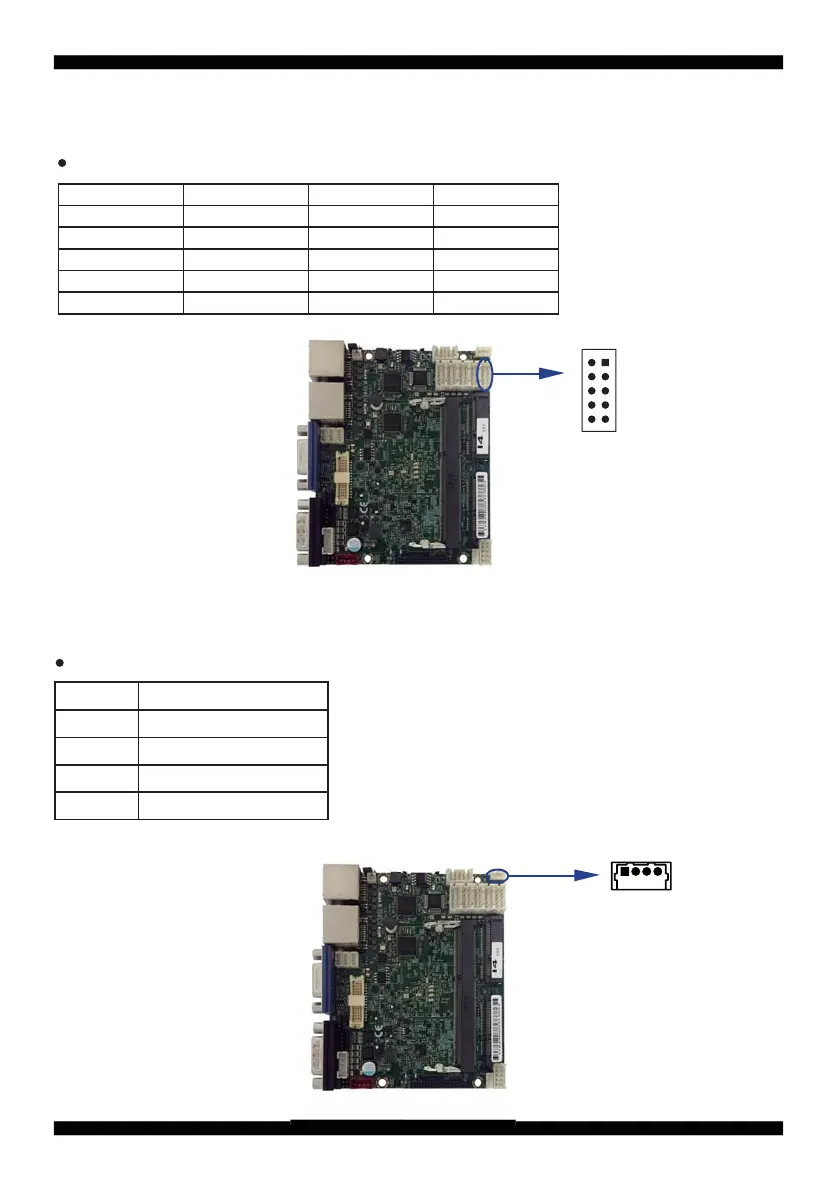

3-3 Audio interface (OEM)
CA3: Line-out / Line-in / Mic-in 2x5 pin (2.0mm) Wafer
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 Line-out-R 2 MIC-IN
3 Line-in-R 4 GND
5 GND 6 GND
7 Line-in-L 8 +5V
9 Line-out-L 10 MIC-IN
CA3
pin1
10
3-4 Audio Amplifi er (OEM)
CALR1: Amplifi er Line-out Right / Left channel 1x4pin (1.25mm) wafer
PIN NO. Description
1 Left+
2 Left-
3 Right-
4 Right+
CALR1
pin1
