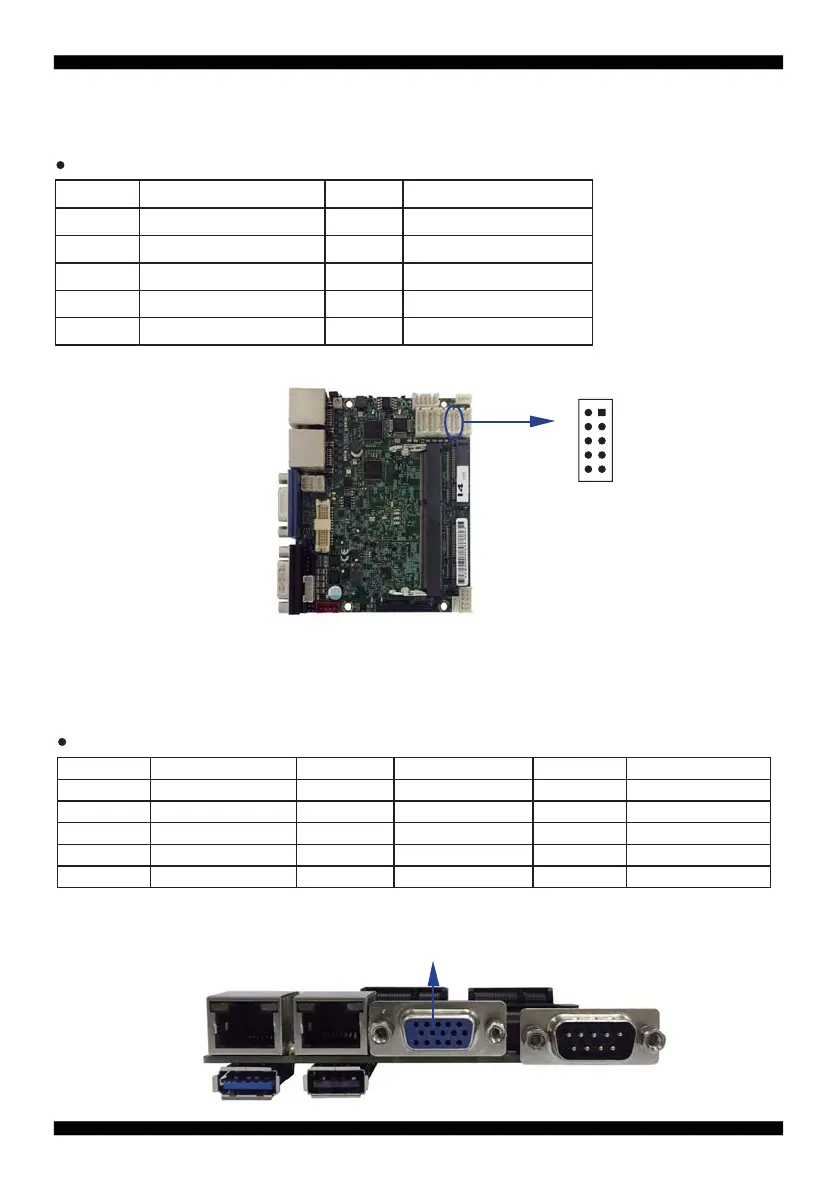

3-6 Front Panel Pin Header
CFP1
:
Front Panel connector 2x5pin (2.0mm) wafer
PIN NO. Description PIN NO. Description
1 Power button pin 2 Power button GND
3 Reset pin 4 Reset GND
5 Power LED 6 Power LED+
7 HDD LED- 8 HDD LED+
9 LAN LED- 10 LAN LED+
CFP1
pin1
10
3-7 VGA Display interface
CG1: VGA Connector (DB15 pin)
PIN NO. DESCRIPTION PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 RED 6 GND 11 NC
2 GREEN 7 GND 12 DDC DATA
3 BLUE 8 GND 13 H-SYNC
4 NC 9 NC 14 V-SYNC
5 GND 10 GND 15 DDC CLOCK
CG1
VGA
