Tera 2I386EW - Usb Interface

54

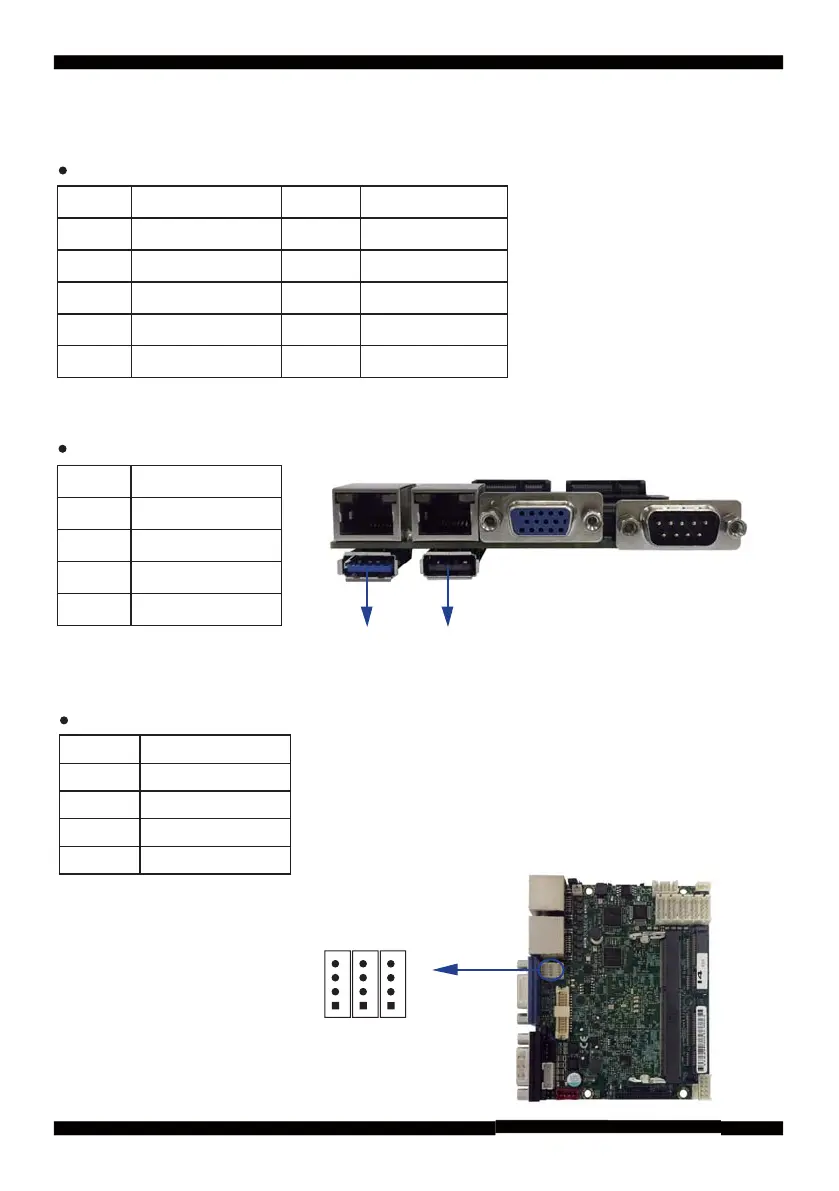

CU1: USB3.0 Port Type A Connector
3-15 USB Interface
CU3 / CU4 / CU11: USB2.0 port 1x4pin (1.25mm) Wafer
PIN NO. Description
1 +5V
2 DATA -
3 DATA +
4 GND
CU2
USB 2.0
CU1
USB 3.0
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 VBUS 6 USB3_RX+
2 USB2_D- 7 GND
3 USB2_D+ 8 USB3_TX-
4 GND 9 USB3_TX+
5 USB3_RX- 10 GND
Note: CU1 USB2.0 Shared with CU11 signal
CU2
:
USB2.0 Port Type A Connector
PIN NO. DESCRIPTION
1 +5V
2 DATA-
3 DATA+
4 GND
CU3
CU4
pin1
CU11
pin1
