Tera 2I386EW - Sata Interface

56

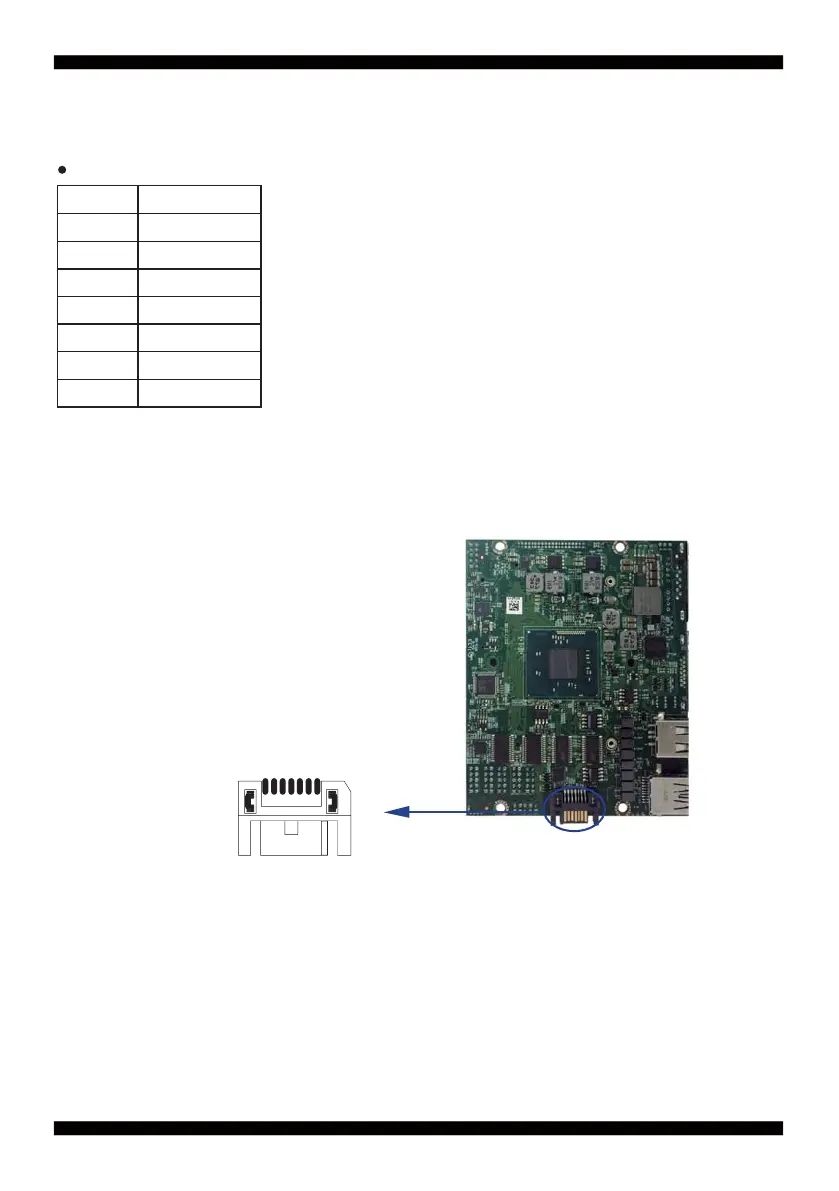

SATA1: SATA Port 1x7pin connector
3-17 SATA Interface
PIN NO. Description
1 GND
2 TX+
3 TX-
4 GND
5 RX-
6 RX+
7 GND
Note
:
1. SATA1 support SATA 2.0 spec update 3Gb/sec.
2. CPO1 provide SATA HDD power +12V, GND, +5V.
SATA1
