Safety

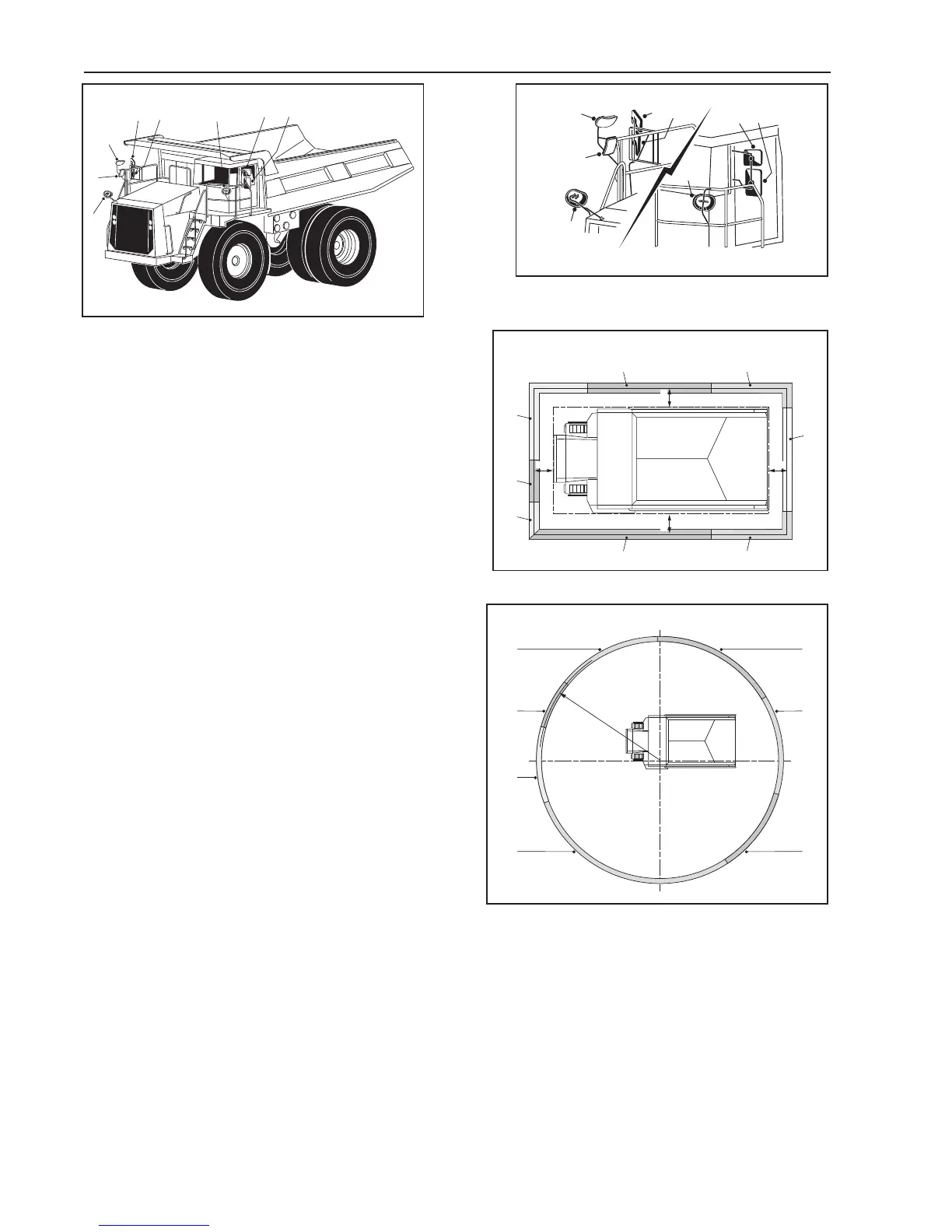

When the three loose mirrors (F, G and H) have been fitted,
the machine has a total of eight mirrors, designated A to H
respectively, and positioned generally as illustrated. The area
surrounding the machine is to be considered as two distinct
fields of view, illustrated below as areas 1 to 8 in the
immediate vicinity, and areas 9 to 15 at a radius of 12 m from
the operator when seated. The operator MUST adjust the
mirrors, and set the CCTV camera, to achieve visibility as
identified below:
Areas 3, 11 and 12 can be directly viewed from the
operator’s seating position without the need for mirrors.
Adjust mirror A to maximize the view of Areas 14 and
15.
Adjust mirror B such that Area 7 is fully visible.
Set mirror C to enhance the view of the front
right-hand step Area.
Adjust mirror D to maximize the view of Areas 14
and 13.
Adjust mirror E to facilitate vision of Area 5.
Adjust mirror F to facilitate vision of Areas 8 and 10.
Adjust mirror G to facilitate vision of Areas 1 and 9.
Adjust mirror H to facilitate vision of Areas 2, 4 and 13.
Set the CCTV to facilitate vision of Areas 6 and 14.
