Installation of Mirrors A and B and Associated Brackets
Mirrors A and B and are supplied fitted, on brackets folded into the handrails. They must be installed by the
customer in the positions defined by the illustration below. Mirror A is to be installed on the upper vertical extension
immediately above the upper hand-rail. Mirror B is to be installed on the lower vertical member between the upper
and lower hand-rails.
Installation of Bracket for Mirror F
The bracket provided for the mounting of mirror F is supplied as a loose item, and must be installed by the customer
in the position defined by the illustration below.

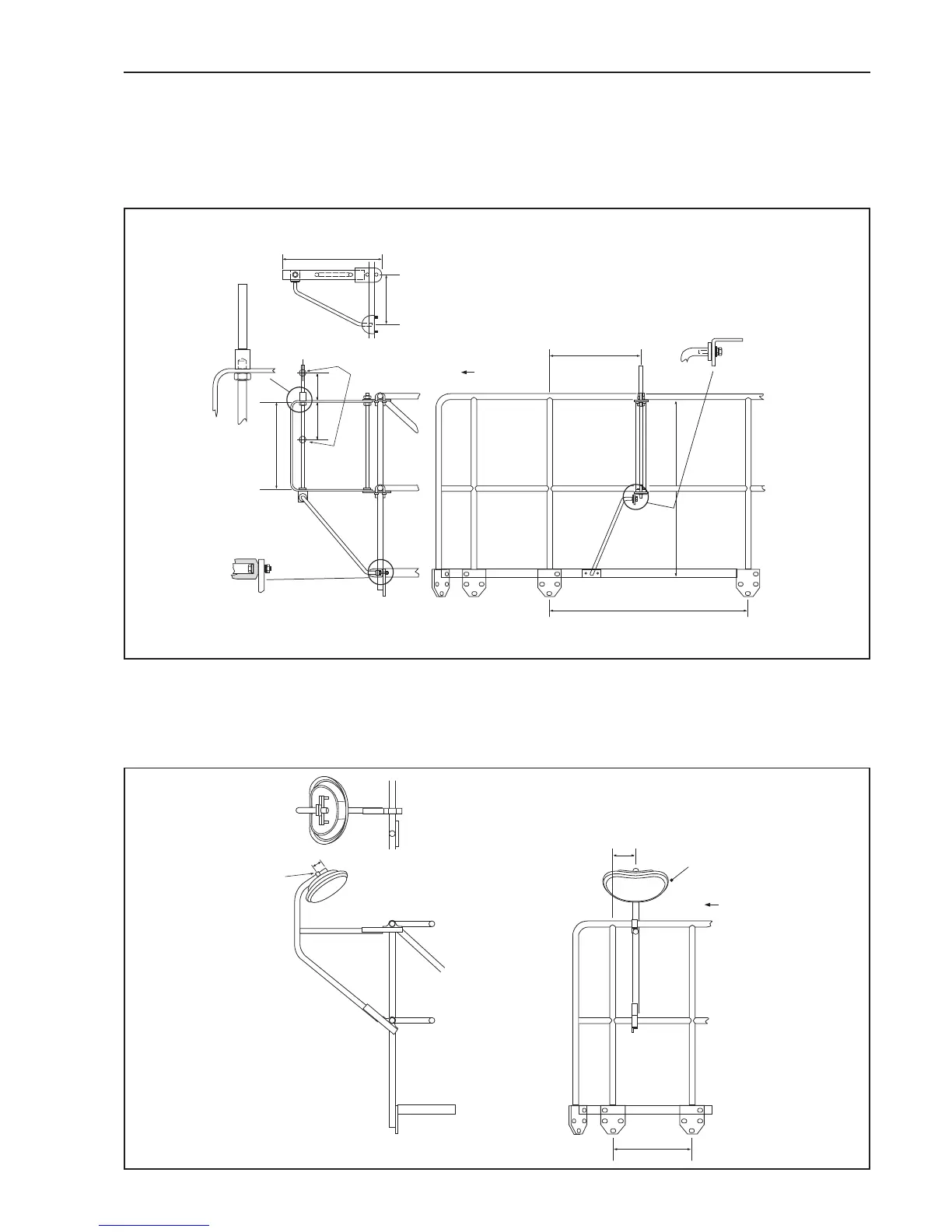

2072
2071
541
500
MIRROR
ATTACHMENT
POSITIONS
FRONT OF
TRUCK
POSITION BRACKET
500mm FROM
CENTRE OF HANDRAIL POST
AS SHOWN
NOT TO SCALE
269
152.4203.2
476.25
969.3
1092.2 Ref.
DETAIL X
DETAIL Y
DETAIL Z
X
Z
Y
120
50
FRONT OF
TRUCK
POSITION BRACKET
120mm FROM
CENTRE OF HANDRAIL POST
AS SHOWN
MIRROR
ATTACHMENT
POSITION
NOT TO SCALE
412 Ref.
Ref.
RHS HANDRAIL
Ref.
RHS HANDRAIL
1
