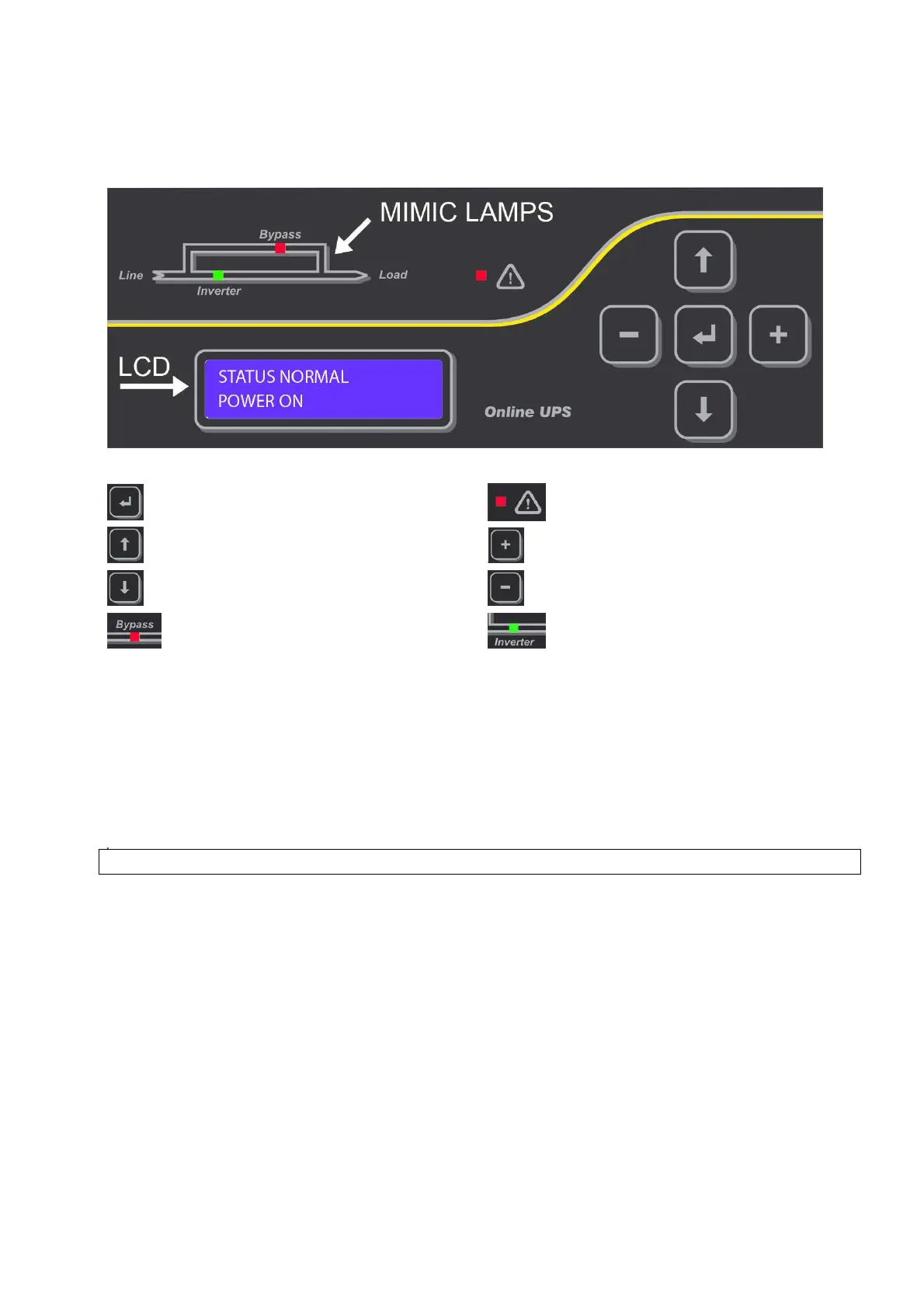

VIEW OF THE CONTROL PANEL
ENTER button
Alarm indicator lamp
Menu up navigation button
Increases the current data
Menu down navigation button
Decreases the current data
Load on bypass lamp
Load on UPS lamp
Alphanumeric LCD panel function
1. Line : menu items and measured parameters
2. Line : alarms are shown one after the other as time shared
II. INSTALLATION
ALL THE OPERATIONS DESCRIBED IN THIS SECTION MUST BE CARRIED OUT EXCLUSIVELY BY
QUALIFIED TECHNICIANS.
The company may no be held liable for any damage caused by incorrect connections or by operations
that are not described in this manual.
STORAGE OF THE UPS
The storage area must have the following characteristics
Temperature : -10 to +50 C
Relative humidity : 95% max.
During storage keep the battery switch always‘’OFF’’ (0 position).
