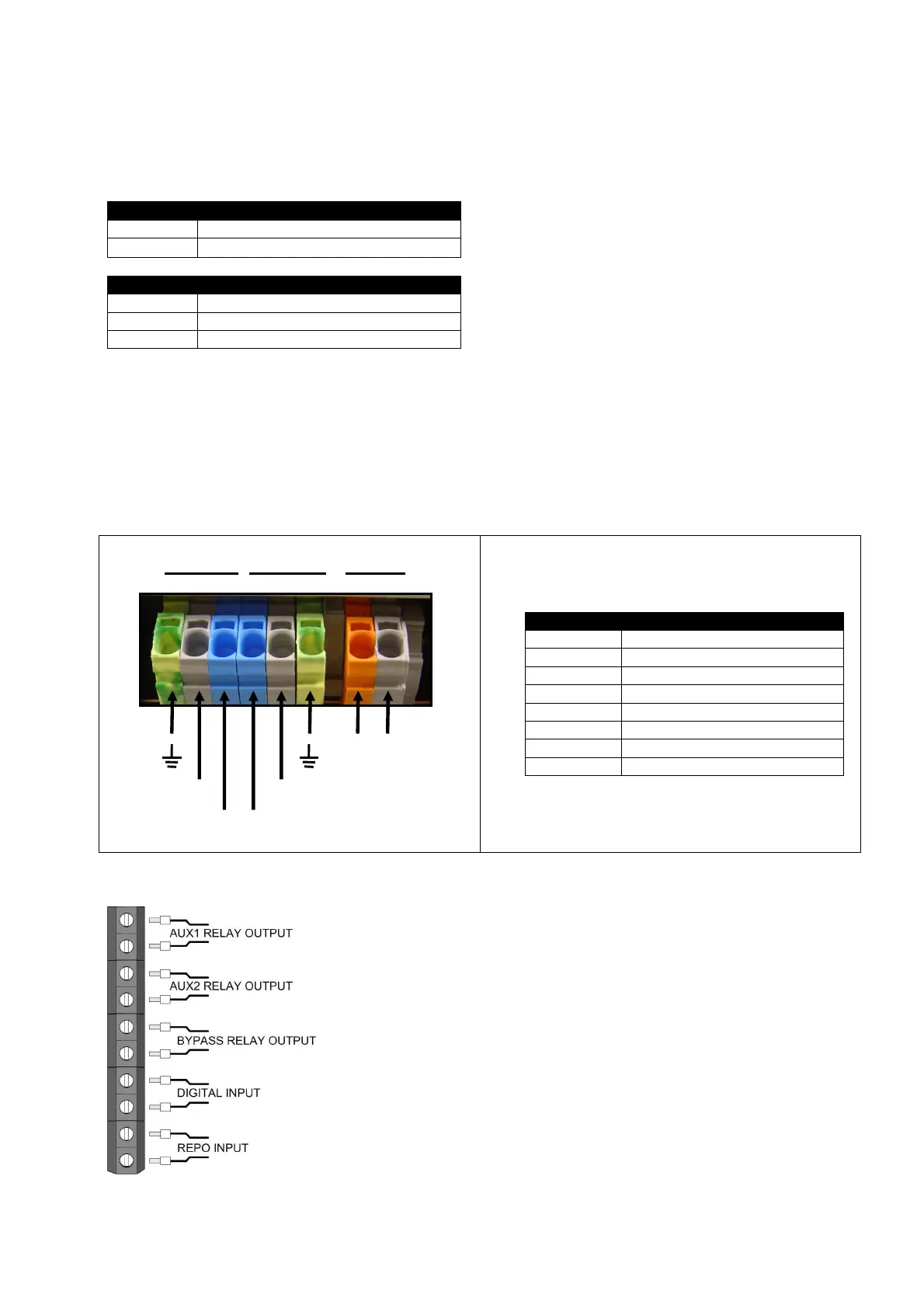

Tescom CL115D Series - Cable Sizes; Fuses; Connections; Alarm Relay Connections

9
CABLE SIZES / FUSES
The input/output cables can be sized to suit the UPS rating according to the table below
Cables CL115D
Input 3x16 mm2 (phase+neutral+earth)
Output 3x16 mm2 (phase+neutral+earth)
Fuses CL115D
Input 80A
Output 80A
Battery 80A
CONNECTIONS
CL115D Series UPS run only on 1-Phase AC power supplies with a NEUTRAL line.
The UPS unit must be grounded in accordance with electrical regulations
Before making power connections to the unit, ensure that the incoming power sources are de-energized and
insulated.
The connections of the UPS should be supplied by grounded outlets. All control cables should be screened and
run in a separate trunking to the power cables.
Terminal Function
K1 Earth input terminal
K2 Phase input terminal
K3 Neutral input terminal
K4 Neutral output terminal
K5 Phase output terminal
K6 Earth output terminal
K7 Battery (+) terminal
K8 Battery (-) terminal
ALARM RELAY CONNECTIONS
AC INPUT
AC OUTPUT
BATTERY
K1- K2- K3 - K4-K5-K6 K7- K8
Phase
(+) (
-
)
Neutral Neutral
Phase
