INSTALLING THE UPS
When installing the equipment the following points should be considered:
• The air outlet and inlet of the UPS is on the rear and front respectively, because of this do not prevent air
ventilation from the rear and front side.
• No objects should be left on its top surface
• Sufficient space should be left in front of the equipment for it to be turned on/off and maintenance operations
to be performed on it (>1 m)
• Keep out of your equipment from the explosive and flammable items
ELECTRICAL CONNECTIONS

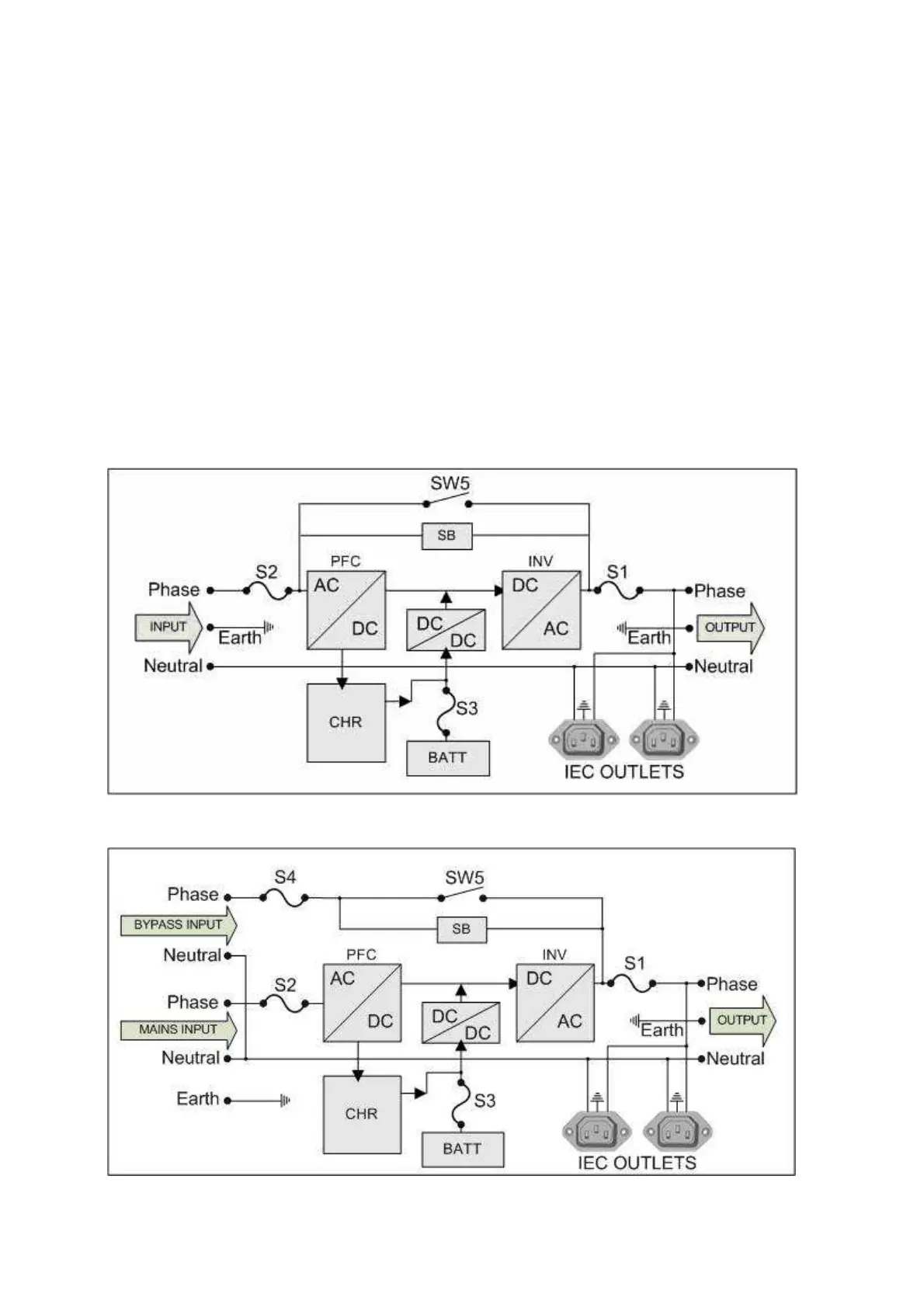

DIAGRAMS OF CONNECTION TO THE ELECTRICAL SYSTEM
Basic connection (no split bypass input option)
Split bypass connection (OPTION)
