5 First steps
73

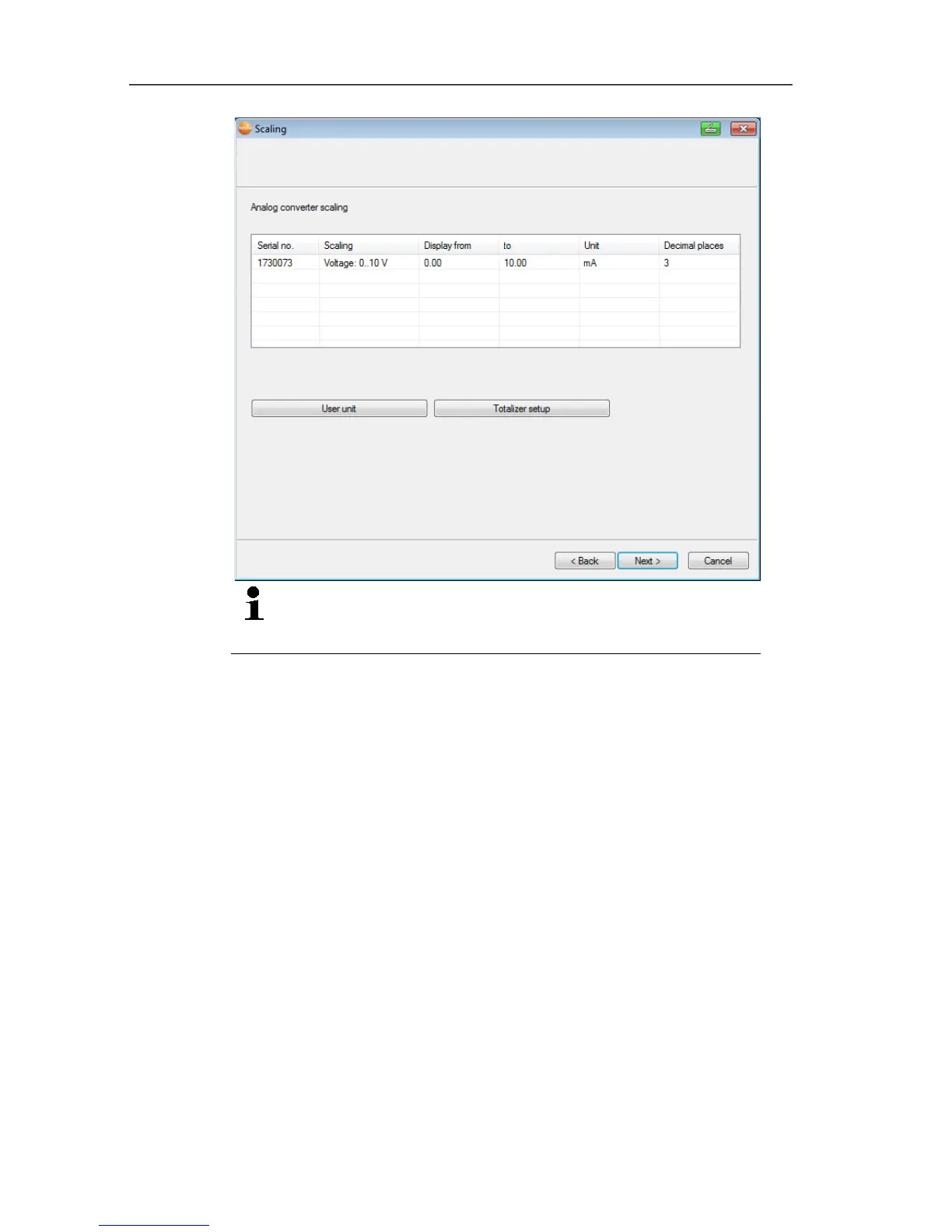

The fields of the Scale, Display from, to, Unit and
Decimal places columns are preassigned. These fields
can be changed individually.
4. Select Scale (see type plate/transmitter operating instructions).
5. Enter Display from and to (see type plate/transmitter operating
instructions).
6. Select Unit. If the desired unit is not available in the selection
list: Add via [User-defined unit].
7. Select number of Decimal places.
8. Click on [Set up sum channel] if the summation of a particular
unit is required.
9. Click on [Next >].
- The list of the probes newly registered in the Saveris base is
shown.
