1 AFE4500 EVM Evaluation
All the latest software, firmware files will be uploaded to TI MSS folder. Use the latest software, firmware before
starting the evaluation. Files in the MSS folder are listed in Table 1-1.
Table 1-1. EVM software and other useful files in MSS folder
File Description
Bio-Sensing_Installer_Vx.exe Base Installer for GUI
AFE4500EVM_Installer_Vx.exe Project specific installer for AFE4500EVM
Register-Config_Vx.zip Contains latest Excel based register generation tool
BSL_Vx.zip Contains latest compiled firmware as well as a utility to load the
firmware into EVM
USB_Driver_Vx.zip Latest USB driver for the EVM
1.1 AFE4500 EVM Kit Contents
1. AFE4500 EVM Demonstration Kit
2. IMP JIG CLOSED (Plugin Board for BIA)
3. IMP JIG OPENED (Plugin Board for BIA)
4. CONNECTOR BOARD (Plugin board for connecting ECG Cables)
5. MHR041 (Plugin board for PPG measurements)
6. USB-to-micro USB cable
7. 10-pin to 10-pin sensor cable (Note: The sensor cable is provided as a convenience to enable
measurements and cannot be used for any SNR measurements.)
8. 3 WAY ECG Cables X 2

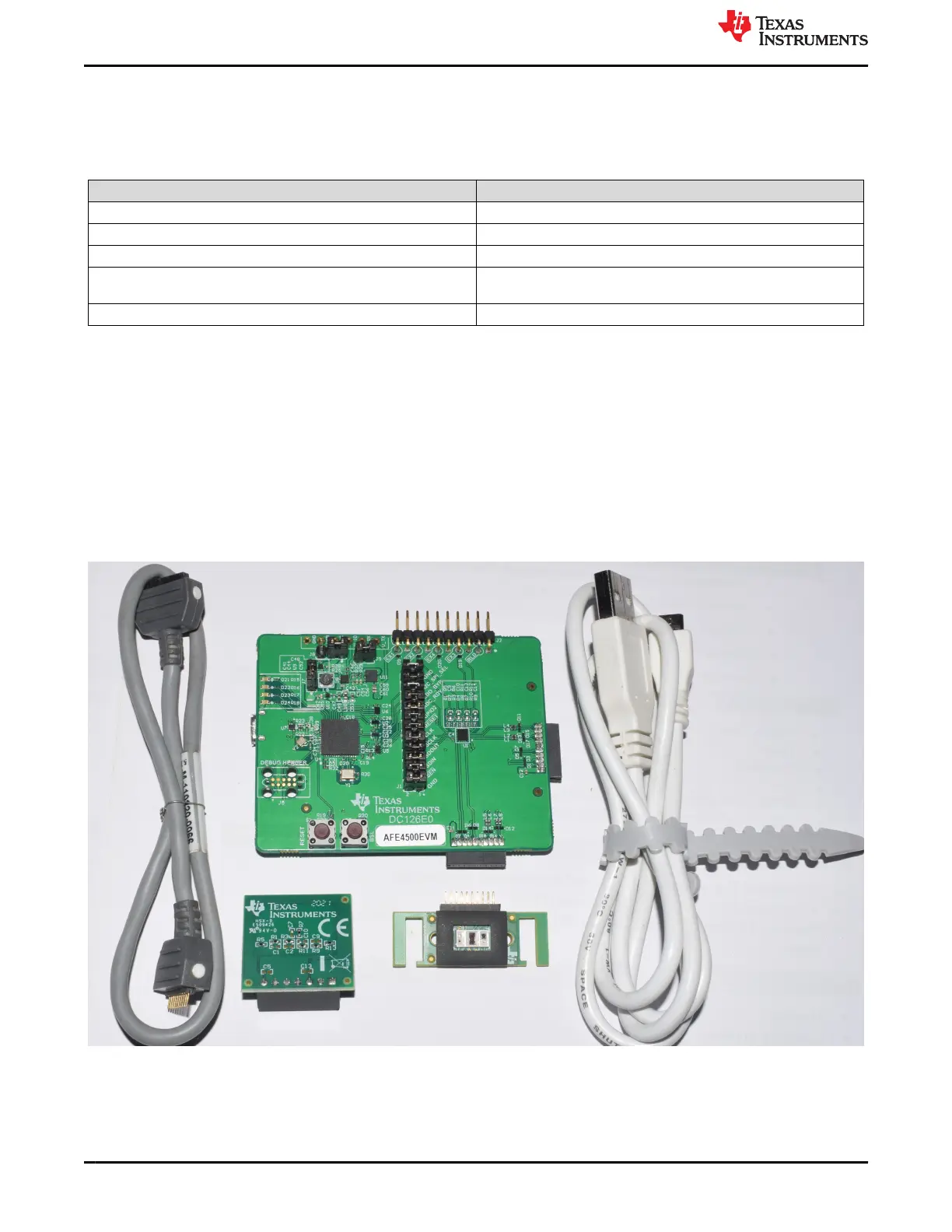

Figure 1-1. Contents of the AFE4500 EVM demonstration kit
