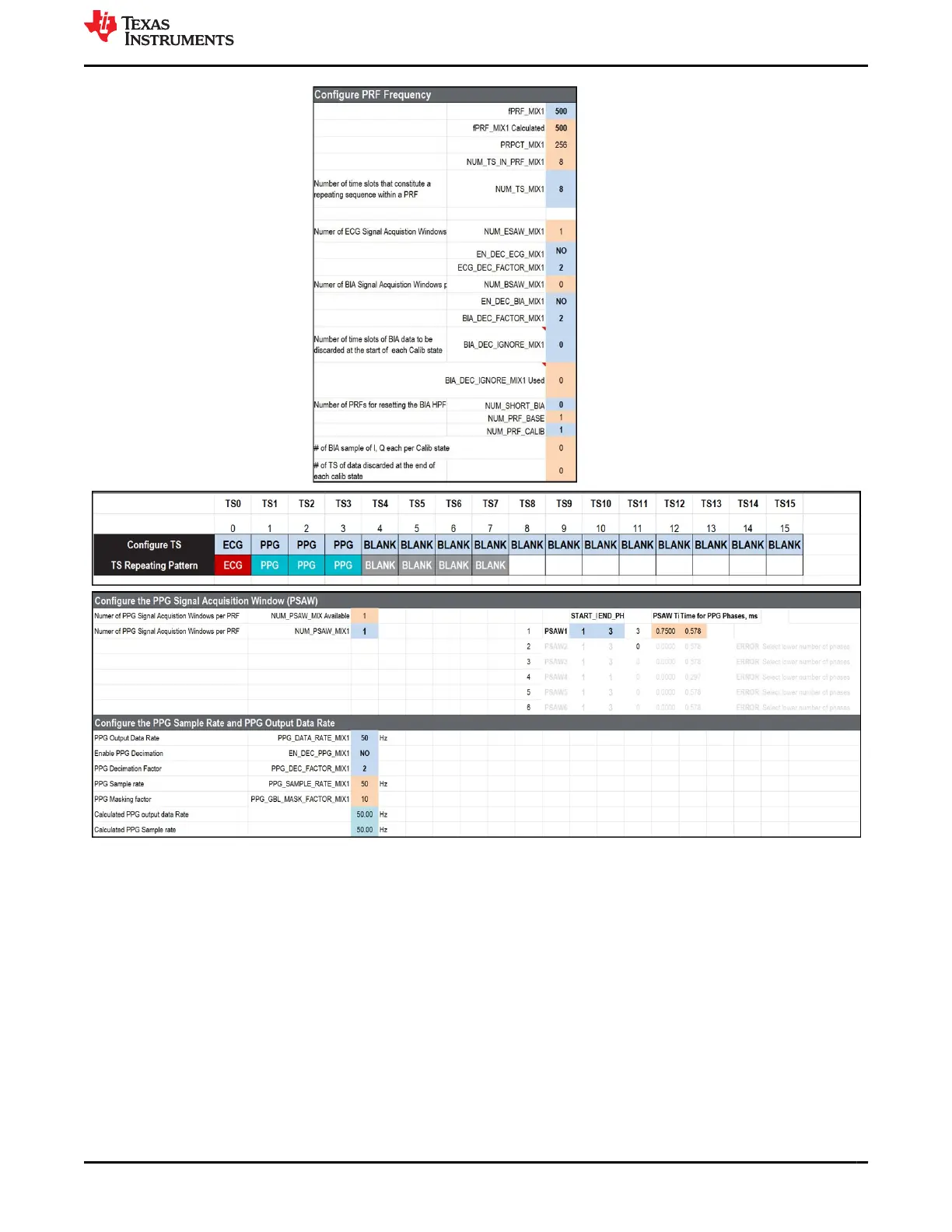

Figure 5-5. MIX configuration
5.5 Generate the Output Files
In Reg_List worksheet click ‘save.*cfg File’ to create the register configuration files, which can be used
for evaluating the EVM as well as creating the required register configurations for customer platform and
application. The output files generated using the excel will be in the same directory as the excel file.
• AFE4500_Settings.cfg: Register configuration in the format required for the EVM
• AFE4500_Settings_mcu.cfg: Register configuration in {address, data} format
• AFE4500_FIFO_SEQ.cfg: Data sequence in the FIFO
• AFE4500_DATARATE.cfg: Output data rate for each type of output data.
www.ti.com
AFE4500 Register Generation Excel
SBAU370 – APRIL 2021
Submit Document Feedback
AFE4500 EVM User Guide 27
Copyright © 2021 Texas Instruments Incorporated
