Sensing\AFE4500EVM\Register Config\BIA HF Closed Electrode\”. BIA related settings can be configured in
“BIA_Config” worksheet.
“BIACalibConfigs” worksheet contains the dynamic switch positions.

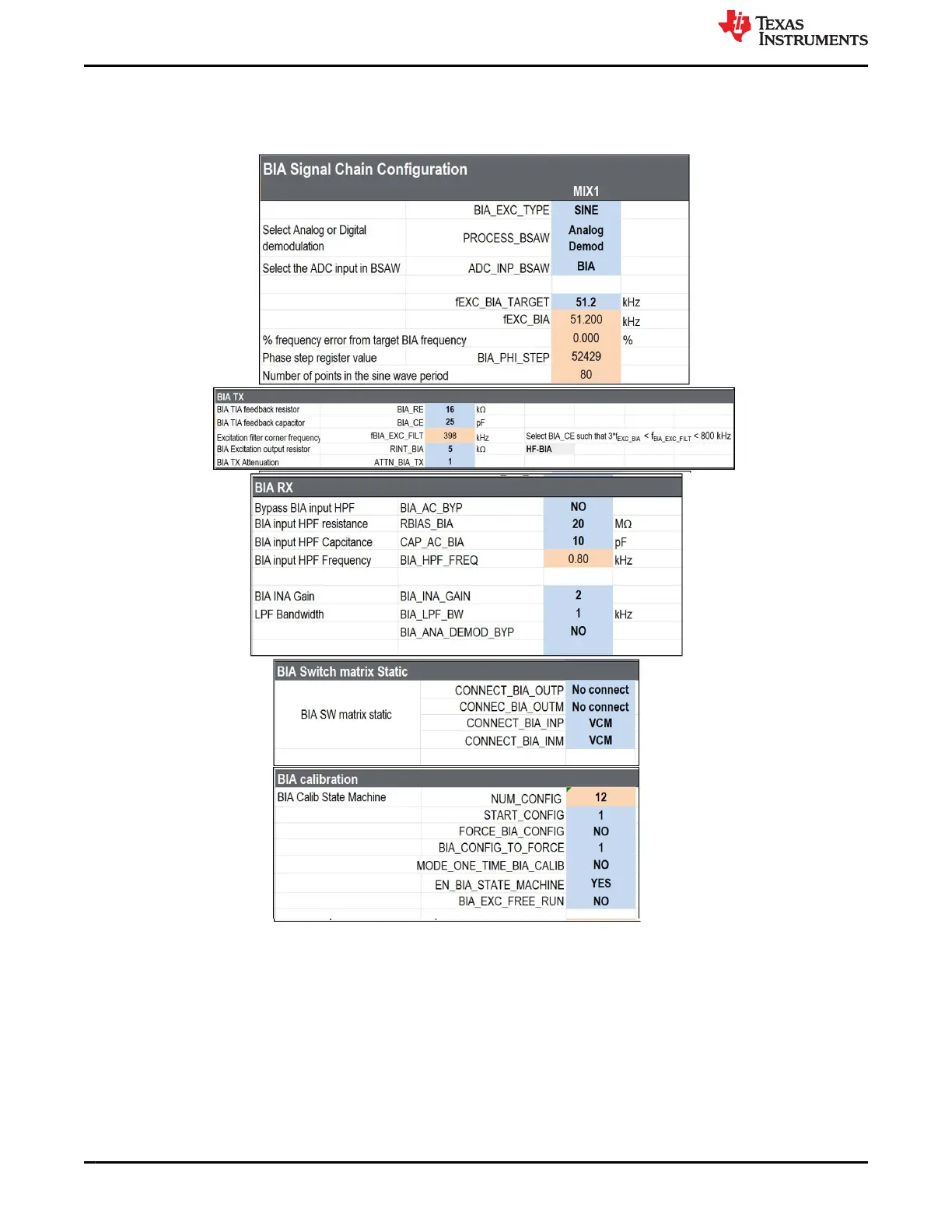

Figure 5-4. BIA Configuration
5.4 Mix configuration
If the acquisition mode selected is MIX1/MIX2, the “MIX_Config” worksheet needs to be configured. The PRF,
time slot related settings, decimation filter settings are available in this worksheet.
AFE4500 Register Generation Excel
